4 Megapixel PTZ Cameras, CCTV Surveillance, Hikvision, Hikvision Darkfighter Cameras, Hikvision PTZ Cameras

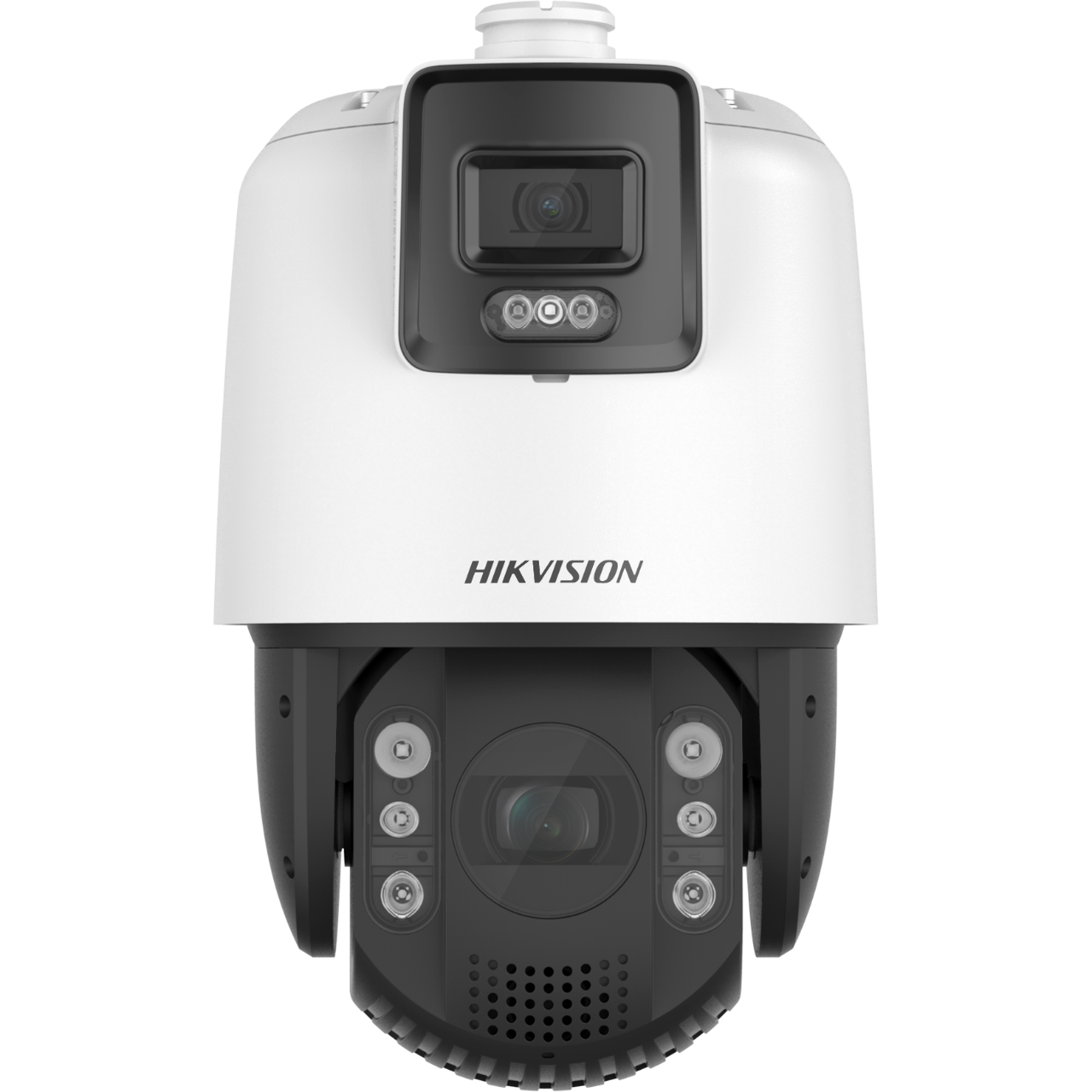

Hikvision DS-2SE7C432MW-AEB(14F1)(P3) 4MP TandemVu Outdoor PTZ Camera, Acusense 32x Zoom
- Captures a large area and great details at the same time
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Secures an expansive area with 32× optical zoom and 16× digital zoom
- Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focus
- Expansive night view with up to 200 m IR distance
- Supports 24 VAC & Hi-PoE
- Active strobe light and audio alarm to warn intruders off
This item is 4-6 weeks lead time.
$2,500.00 $3,400.00 inc GST +3 Year Warranty & Support
- Camera
- Image Sensor [Bullet channel]: 1/1.8″ Progressive Scan CMOS; [PTZ channel]: 1/1.8″ progressive scan CMOS
- Min. Illumination
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
[PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
- Shutter Speed 1 s to 1/30,000 s
- Slow Shutter yes
- Focus semi-auto;manual; auto
- Day & Night ICR
- Zoom [PTZ channel] 32 × optical, 16 × digital
- Day/Night Switchday, night, auto, scheduled-switch
- BLC yes
- WDR 120 dB WDR
- HLC yes
- 3D DNR yes
- Defogyes
- EIS yes
- Regional Exposure yes
- Regional Focus yes
- Image Settings saturation;brightness;contrast;sharpness
- White Balance MWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB
- SNR＞52dB
- General Functionmirror, password protection, watermark, IP address filter
- Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
- Lens
- Focal Length[Bullet channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 × optical
- Zoom Speed[PTZ channel]: approx. 5.6 s
- FOV
[Bullet channel]: Horizontal field of view: 88.7°, Vertical field of view: 44.7°;
[PTZ channel]: Horizontal field of view: 60.2° to 2.3° (wide-tele)
- Aperture [Bullet channel]: F1.0; [PTZ channel]: F1.5
- Illuminator
- Supplement Light Type [Bullet channel] white light, [PTZ channel] IR
- Supplement Light Range [Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 200 m
- Smart Supplement Light Yes
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan Speedpan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
- Tilt Speedtilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
- Proportional Zoomyes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan 4 pattern scans
- Power-Off Memory yes
- Park Actionpreset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
- 3D Positioning yes
- PTZ Status Display yes
- Preset Freezing yes
- Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
- Exception DetectionIP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot
- Video
- Stream Typemain stream;sub-stream;third stream
- Main Stream
[Bullet channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
[PTZ channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
[Bullet channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
[Bullet channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression H.265;H.264;MJPEG
- Video Bit Rate32 kbps to 16384 kbps
- H.264 Typebaseline profile;main profile;high profile
- H.265 Typemain profile
- H.264+yes
- H.265+yes
- SVCyes
- ROImain stream, sub-stream and third stream respectively support eight fixed areas
- Audio
- Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM
- Audio Bit Rate32 to 192 Kbps (MP2L2)
- Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
- Environment Noise Filteringyes
- Smart Features
- Smart Record ANR;Dual-VCA
- Warning And Alertwhite light and audible warning
- Network
- Network StorageNAS (NFS，SMB/ CIFS), ANR
- ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
- APIOpen-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP
- Simultaneous Live View20
- User/Host32
- Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
- ClientiVMS-4200;Hik-Connect
- Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+
- Image
- Image Parameters Switch Yes
- Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
- Interface
- Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
- On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
- Alarm Input2 alarm inputs
- Alarm Output1 alarm output
- Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
- Audio Output1 audio output, line level, impedance: 600 Ω
- Event
- Basic Event[PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
- Smart Event[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
- Alarm Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
- Smart Tracking[PTZ channel] yes
- Smart LinkageManual tracking, auto tracking, tracking takeover, track in turn
- Deep Learning Function
- Face Capture[Bullet channel] no,[PTZ channel] yes
- General
- Power24 VAC, Hi-PoE
- Power Consumption And CurrentMax. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light
- Operating Conditions-30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH
- Resetyes
- DemistDemist by heating the glass
- MaterialADC12
- DimensionsØ 220 mm × 382.1 mm (Ø 8.66″ × 15.04″)
- WeightApprox. 6 kg (13.23 lb.)
- Approval
- ProtectionIP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
