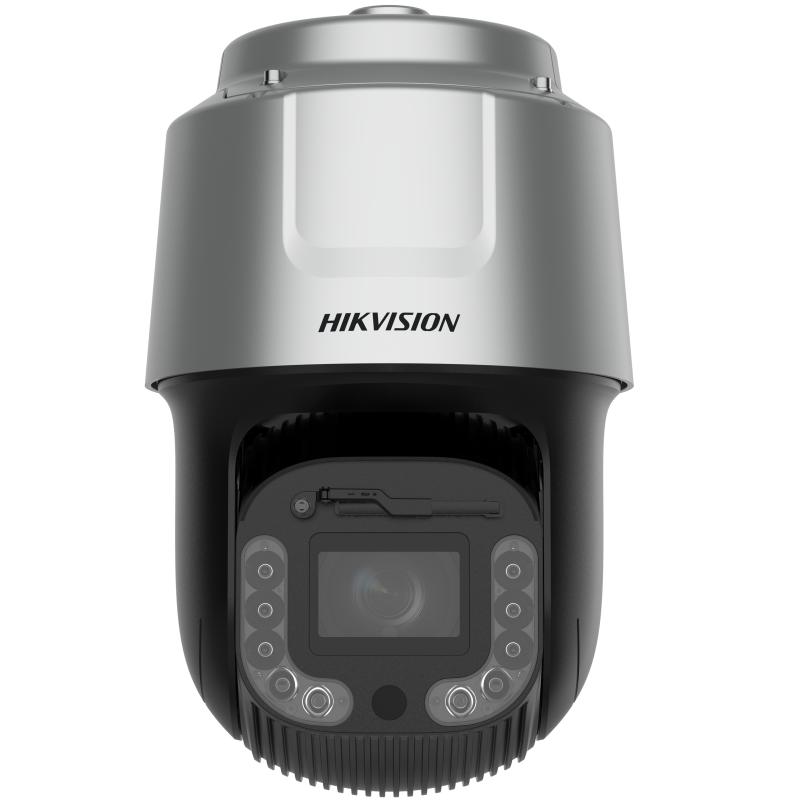

Hikvision DS-2DF8C260I5XG1-ELW 2MP 60× DarkFighter Laser Network Speed Dome, Up to 500m Laser, IP67 IK10

Product SKU: DS-2DF8C260I5XG1-ELW

Product Overview

The DS-2DF8C260I5XG1-ELW is a professional-grade 2 MP Ultra-Series PTZ speed dome engineered for long-range, mission-critical outdoor surveillance. Equipped with a large 1/1.2″ progressive-scan CMOS sensor and capable of delivering full HD 1080p resolution, it provides exceptional clarity across vast open environments. Its powerful 60× optical zoom (6.0–360 mm) and 16× digital zoom offer extreme reach, while DarkFighter low-light imaging and laser-illuminated IR (up to approximately 500 metres) maintain visibility in challenging night-time conditions. With 150 dB wide dynamic range, IP67 and IK10 protection (excluding dome), and wide operating temperature support, this PTZ is ideal for industrial, coastal, transport and perimeter applications requiring precise long-distance monitoring.

Why Choose the DS-2DF8C260I5XG1-ELW

The DS-2DF8C260I5XG1-ELW excels where extreme zoom capability, ultra-low-light performance and durable construction are essential. Its 60× zoom lens allows detailed examination of distant subjects, making it highly effective for large perimeters, ports, highways, and open industrial grounds. The large sensor enhances colour performance in dim environments, while the built-in laser provides long-range illumination where traditional IR is insufficient. Combined with full 360° pan, extensive tilt range, advanced image processing and rugged weather-resistant housing, this PTZ delivers reliable, high-precision surveillance for high-demand outdoor deployments.

Key Capabilities



Key Features

• 60× optical zoom + 16× digital zoom: Delivers unmatched long-range viewing capability, enabling wide-area scanning followed by zoomed-in inspection of distant vehicles, structures or individuals. Ideal for airports, ports, highways and perimeter lines.

• 6.0–360 mm motorised lens: Provides approximately 61° wide-angle coverage down to around 1.3° at full telephoto, offering both situational context and pinpoint detail when needed for investigative or security purposes.

• Laser-assisted night vision: A built-in laser provides supplemental illumination reaching up to roughly 500 metres, supporting long-distance visibility in complete darkness where traditional IR fails to deliver clarity.

• Large 1/1.2″ low-light sensor: The oversized sensor boosts brightness, sharpness and colour fidelity in low-light environments, ensuring better detail retention at night or during low-visibility conditions such as fog or haze.

• 150 dB wide dynamic range: Advanced dynamic range processing maintains clarity in scenes with intense shadows and highlights, ensuring readable footage in environments with bright headlights, reflective surfaces or back-lit views.

• IP67 and IK10 protection: Weather-resistant and impact-protected housing makes the camera suitable for exposed outdoor locations including industrial plants, coastal sites, transport hubs and critical infrastructure zones.



Specifications Summary

Feature	Specification
Resolution	2 MP (1920 × 1080)
Sensor	1/1.2″ progressive-scan CMOS
Lens / Zoom	6.0–360 mm motorised; 60× optical; 16× digital
Horizontal Field of View	Approx. 61° (wide) to 1.3° (tele)
Minimum Illumination	Colour: ~0.0005 Lux; B/W: ~0.0001 Lux (0 Lux with laser)
Supplemental Light Range	Laser up to approx. 500 m
WDR	150 dB Wide Dynamic Range
Pan / Tilt Range	Pan: 360° continuous; Tilt: -20° to +90° (auto-flip)
Ingress Protection	IP67 / IK10 (dome excluded)
Operating Temperature	-40 °C to +70 °C



Ideal Use Cases

• Ports & Maritime Areas – Long-range zoom and laser illumination suit vessel monitoring, docks, marinas and waterfront perimeters.
• Transport Hubs & Highways – Excellent for lane monitoring, overpasses, rail stations and large traffic corridors requiring robust PTZ coverage.
• Critical Infrastructure – Ideal for power stations, industrial plants, refineries and high-risk facilities requiring reliable, long-distance visibility.
• Large Public Spaces – Suitable for airports, stadiums, plazas and open campuses where a single PTZ must cover vast areas.
• Coastal & Harsh Environments – Rugged build supports installation in exposed or corrosive environments requiring heavy-duty durability.



Choosing Between Wide and Tele Zoom Settings

The DS-2DF8C260I5XG1-ELW offers a motorised zoom range from 6.0 mm to 360 mm. The wide setting provides around 61° horizontal field of view, ideal for general situational monitoring. At full telephoto, the field narrows to approximately 1.3°, enabling precise recognition of distant subjects such as vehicles, gates or movement along long corridors or waterfronts.

Lens Setting	Approx. Horizontal FOV	Best For
6.0 mm	≈ 61°	Wide-area monitoring, open yards, general situational awareness
360 mm	≈ 1.3°	Long-range identification, distant targets, perimeter and traffic monitoring

Tip:
Use the wide zoom setting for general coverage, and switch to the telephoto range when you need precise detail or long-distance recognition.



FAQs

1. How far can the camera see at night?
   The integrated laser illumination enables visibility of distant subjects up to approximately 500 metres in complete darkness. This makes it an excellent choice for long-range surveillance where standard IR lighting is insufficient.
2. What is the benefit of the large 1/1.2″ sensor?
   The larger sensor increases light intake, resulting in superior brightness, colour accuracy and image clarity, especially during night-time or low-illumination scenarios. It delivers higher performance compared to standard PTZ cameras using smaller sensors.
3. Is the camera suitable for harsh outdoor environments?
   Yes — the DS-2DF8C260I5XG1-ELW is built for demanding outdoor conditions with IP67 weather protection and IK10 impact resistance (excluding dome). It operates reliably from -40 °C to +70 °C, making it ideal for industrial sites, coastal areas and exposed perimeters.
