Product SKU: DS-2CD6D44G1H-IZS
Product Overview

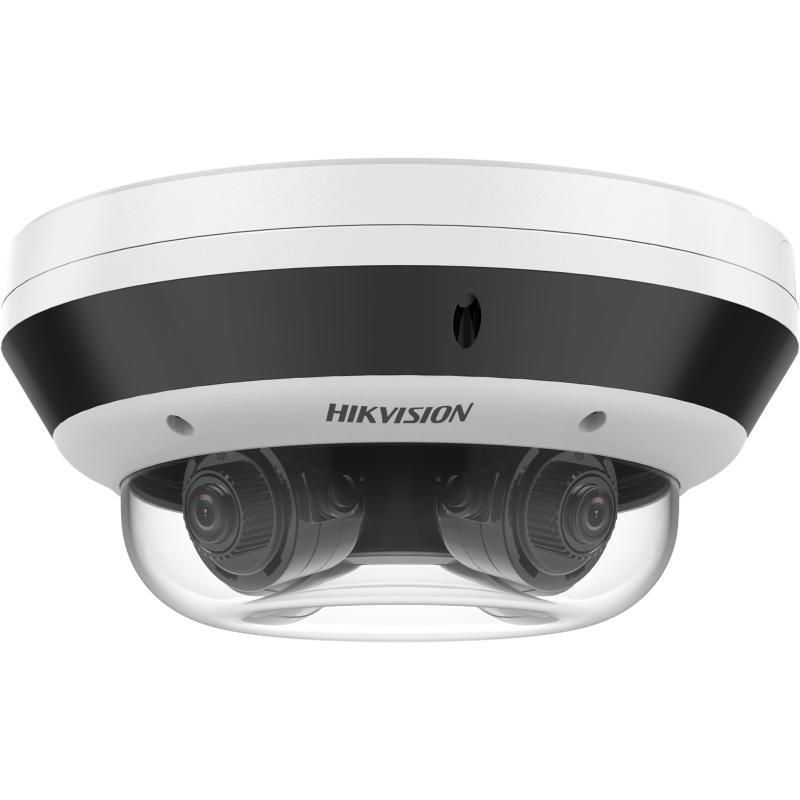

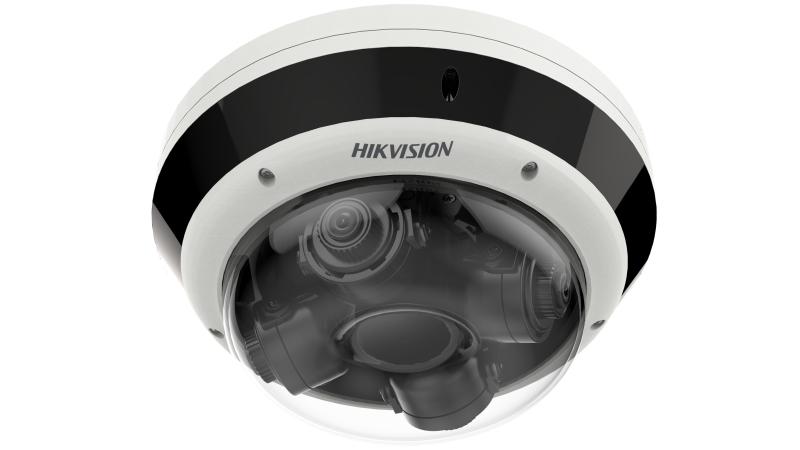

The DS-2CD6D44G1H-IZS is a professional multi-sensor panoramic network camera that combines four independent 4 MP varifocal lenses (2.8–12 mm) to deliver full 360° coverage from a single unit. Designed to eliminate blind spots and cover expansive areas with fewer devices, it offers detailed imagery, remote adjustment capabilities and seamless integration into modern surveillance systems. Built for demanding environments, it supports advanced low-light operation, strong back-light compensation and flexible mounting options.
Why Choose the DS-2CD6D44G1H-IZS
Choosing the DS-2CD6D44G1H-IZS means opting for an efficient, high-performance panoramic solution that replaces multiple conventional cameras with one unit. Its four motorised varifocal lenses enable precise framing and broad coverage in one installation, reducing wiring complexity and installation costs. With true 120 dB wide dynamic range for challenging lighting, IP67 and IK10 protection for harsh outdoor environments, plus audio/alarm I/O for system integration, this camera delivers outstanding reliability, adaptability and value across large-scale surveillance sites.
Key Capabilities
Four Independent Varifocal Lenses
The camera incorporates four adjustable lenses (2.8-12 mm) allowing each to be tilted and focused individually—enabling comprehensive 360° scene capture and the elimination of blind spots in large, open or multi-directional areas.
360° Panorama from a Single Unit
With full-scene coverage built in, this unit replaces multiple traditional cameras—simplifying installation, reducing cost and maintenance, while delivering seamless wide-area surveillance with consistent image quality.
120 dB True Wide Dynamic Range (WDR)
The inclusion of true 120 dB WDR ensures that bright and dark regions in the same scene—such as entrance foyers with glass or outdoor car parks at dusk—are balanced effectively, delivering clear, usable video regardless of lighting extremes.
Rugged Design for Harsh Environments
Rated IP67 for dust and water resistance and IK10 for impact protection, the camera is engineered for outdoor installations and high-risk zones. Its robust housing ensures long-term reliability in industrial, transit or venue settings.
Audio & Alarm Integration
With built-in audio input/output and alarm I/O interfaces, the camera seamlessly integrates with external speakers, microphones, or alarm systems—making it ideal for sites requiring triggered events or audio-assisted surveillance.
Efficient Compression & Storage Support
Supporting H.265+/H.265/H.264+/H.264 encoding and on-board microSD up to 1 TB plus NAS/ANR functionality, this camera supports efficient storage, reduced bandwidth and scalable retention—ideal for large-site deployments.
Key Features
-
Four-directional imaging: Equipped with four independent lenses, the DS-2CD6D44G1H-IZS captures full 360° panoramic coverage, allowing you to monitor multi-direction zones with a single device and minimise blind spots.
-
4 MP resolution per lens: Each lens captures up to 2688 × 1520 resolution, giving fine detail across wide scenes and enabling clear identification and analytics on large video wall setups.
- Varifocal 2.8–12 mm lenses with adjustable tilt: The motorised varifocal lenses allow you to remotely zoom and adjust field of view from 102.4° to 31.2° horizontal, enabling flexible coverage tailored to your site’s geometry.
- True 120 dB WDR & 3D DNR: The camera handles high contrast lighting and low-light conditions with ease thanks to true 120 dB wide dynamic range and 3D digital noise reduction—ensuring clearer footage at dusk or under complex lighting.
- IP67 & IK10 environmental rating: Built to withstand harsh outdoor conditions and tamper-prone zones, the housing provides dust/water protection and vandal resistance making the unit ideal for external, industrial or public-facing sites.
- Audio/Alarm I/O and advanced network protocols: With support for audio line in/out, alarm input/output, and on-board storage, this camera integrates easily into enterprise-grade security systems and responds to alarms or events as required.
Specifications Summary
| Feature |
Specification |
| Max. Resolution |
2688 × 1520 |
| Lens |
Motorised varifocal 2.8-12 mm |
| Horizontal Field of View |
102.4° to 31.2° |
| Vertical Field of View |
54.7° to 17.6° |
| Wide Dynamic Range (WDR) |
120 dB |
| Minimum Illumination |
0.005 Lux (Colour, F1.2), 0.002 Lux (B/W, F1.2) |
| Compression Formats |
H.265+, H.265, H.264+, H.264 |
| Storage |
microSD up to 1 TB |
| Environmental Rating |
IP67, IK10 |
| Dimensions |
Ø 290 mm × 148 mm |
Ideal Use Cases
- Transport hubs & airports – Monitor large concourses, boarding zones or baggage halls with a single device covering multiple angles.
- Retail complexes & malls – Oversee wide corridors, atriums and multiple passageways efficiently and with minimal installation overhead.
- Stadiums & event venues – Provide panoramic coverage of seating areas, entry gates and concourses with fewer cameras and consistent image quality.
- Commercial & government building lobbies – Deploy in large open-plan areas to reduce the number of cameras while maintaining complete visibility.
Choosing Between Lens Options
The DS-2CD6D44G1H-IZS offers a motorised varifocal lens range of 2.8–12 mm, providing flexibility from a wide 102.4° view to a narrower 31.2° view. This allows installers to tailor each lens to the specific scene, whether covering wide open zones or focused entry points.
Tip:
Select a wider setting (e.g., 2.8 mm) for broad site coverage and a narrower zoom (e.g., 12 mm) when you need detailed monitoring of a specific area or pathway.
FAQs
- How many lenses does the DS-2CD6D44G1H-IZS have?
It is equipped with four independent varifocal lenses within one housing, each capable of being individually adjusted for angle and focus. This multi-lens configuration enables full panoramic coverage while offering detailed surveillance over each sector of the scene.
- What is the field of view?
When combined, the four lenses provide up to 360° panoramic coverage. Each lens can be set with a horizontal field of view ranging from approximately 102.4° down to 31.2°, allowing flexible framing depending on the installation environment.
- Does the camera handle strong back-light conditions?
Yes. The camera features true 120 dB wide dynamic range (WDR) plus 3D digital noise reduction (3D DNR), which help it to maintain clear, usable image quality even in high-contrast lighting scenarios such as entrances, glass facades or outdoor dusk conditions.
- Is this unit suitable for outdoor installation?
Yes. With an IP67 rating for dust and water resistance and IK10 for vandal protection, the camera is designed for outdoor, industrial and high-traffic environments—ensuring long-term reliability in harsh or exposed settings.
- Can it integrate with alarms and audio systems?
Absolutely. The camera features audio input/output and alarm I/O capability, enabling it to interface with external speakers, microphones and alarm systems—ideal for sites where triggered alerts, public address or event responses are required.
