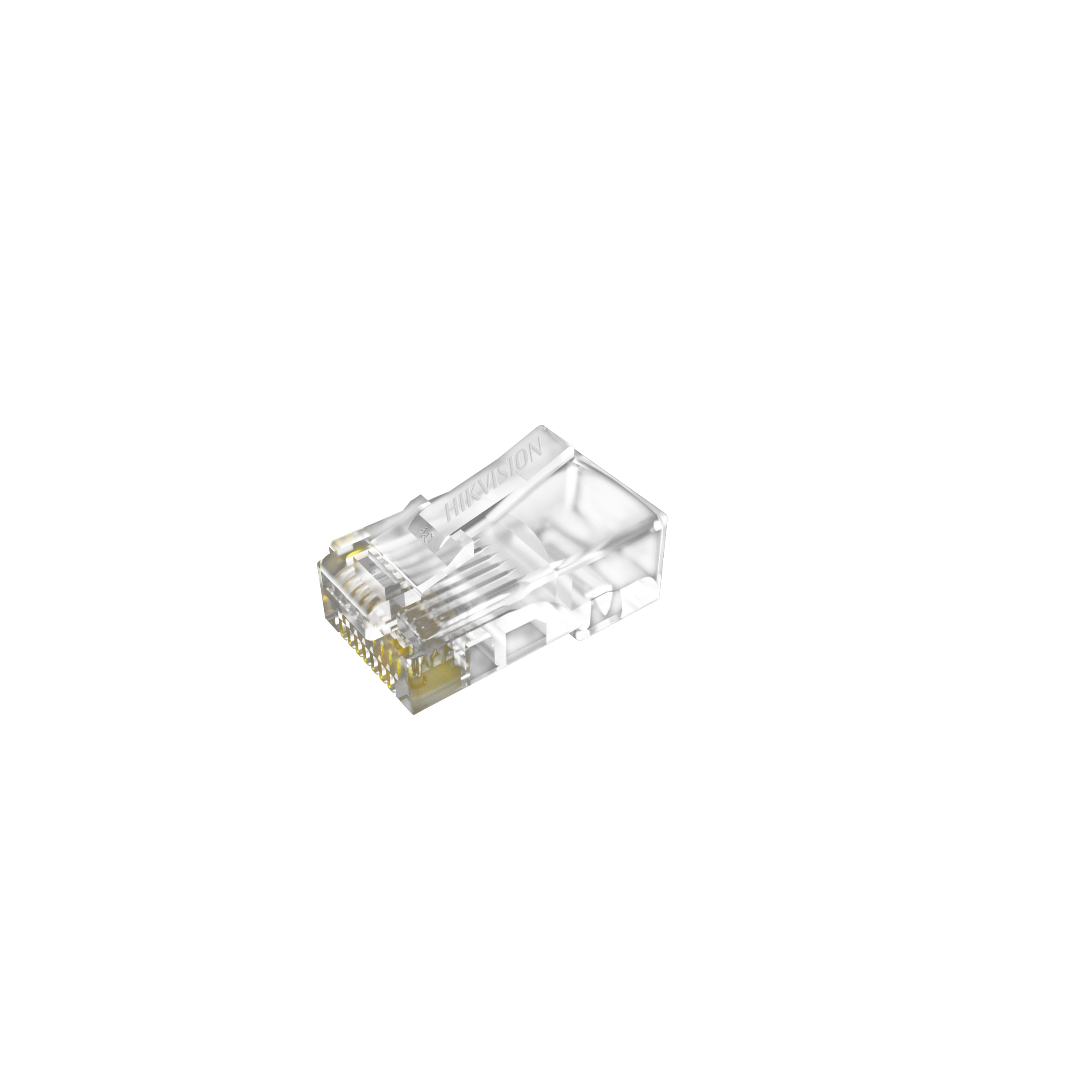

The Hikvision DS-1M6UA is a high-quality RJ45 male plug designed for terminating Cat6 copper Ethernet cables (8P8C). It offers reliable electrical performance, solid mechanical strength, and corrosion resistance thanks to its gold-plated contacts.
Key features include:
-
15 micro-inch or 30 micro-inch gold plating on the contact surfaces to reduce contact resistance and improve durability.
-
Supports Gigabit Ethernet (1000Base-T), which demands all eight conductors working properly.
-
Rated maximum current: 1.5 A at 25 °C.
-
Maximum voltage: ≤ 150 VAC.
-
Insulation resistance: ≥ 1000 MΩ when tested at 100 V DC.
-
Withstand voltage: 1 kV AC (RMS).
-
Contact resistance: ≤ 20 mΩ.
-
Strong retention: pull-out strength of ≥ 50 N held for 60 ± 5 seconds.
-
Insert/extract cycle life: ≥ 750 cycles.
-
Operating temp range: –25 °C to +55 °C; storage temp: –10 °C to +40 °C; humidity less than 80%.
-
Materials: housing made from polycarbonate, rated UL94V-2 for flammability; conductors of copper alloy with the gold plating.
Use Cases
Here are where the DS-1M6UA plug typically is used:
-
Ethernet Installations in Security Systems
Used to terminate network cables connecting Hikvision cameras, NVRs, or other IP devices, especially where Cat6 performance is required.
-
Retrofits or Repairs
When existing network runs need new RJ45 ends, this plug offers a quality component to preserve / enhance signal integrity.
-
High-Moisture or Moderately Harsh Environments
Gold plating helps resist oxidation; polycarbonate housing helps resist impact or outdoor stress (when housed properly).
-
Professional Installations Where Reliability Matters
For installations in commercial buildings, data centres, or critical infrastructure, where connector quality can affect uptime and performance.
-
OEM / Bulk Use
Suppliers or integrators buying high volume: note there are 15µ and 30µ variants; the 30µ tends to be more durable for frequent connect/disconnects or harsher conditions.
Frequently Asked Questions (FAQs)
| Q |
A |
| What’s the difference between 15µ and 30µ gold plating? |
Thicker gold plating (30 micro-inches) offers better durability (better wear, corrosion resistance, repeated connections/disconnections) vs thinner plating (15 µ). For fixed installations with little handling, 15µ may suffice; for field-changes, 30µ is more robust. |
| Will these plugs support PoE? |
Yes, since the current rating is 1.5 A @ 25 °C, this can handle typical PoE (including PoE+ in many cases) as long as the cabling and installation meet the overall system requirements. |
| Is it suitable for outdoor or exposed use? |
The plug itself is not fully weather sealed; for outdoor or exposed use you would need to ensure that the RJ45 termination is enclosed in weatherproof connectors or enclosures. The materials are resistant, but moisture, dirt and corrosion need to be managed. |
| How many insertion / extraction cycles before failure? |
The plug is rated for at least 750 insertion/extraction cycles for the contacts. |
| What’s the environmental operating range? |
Operating temperature: –25 °C to +55 °C; storage temperature: –10 °C to +40 °C; relative humidity < 80%. |
| What about signal / voltage ratings? |
Max voltage ≤ 150 VAC; insulation resistance ≥ 1000 MΩ at 100 V DC; contact resistance ≤ 20 milliohms. |
