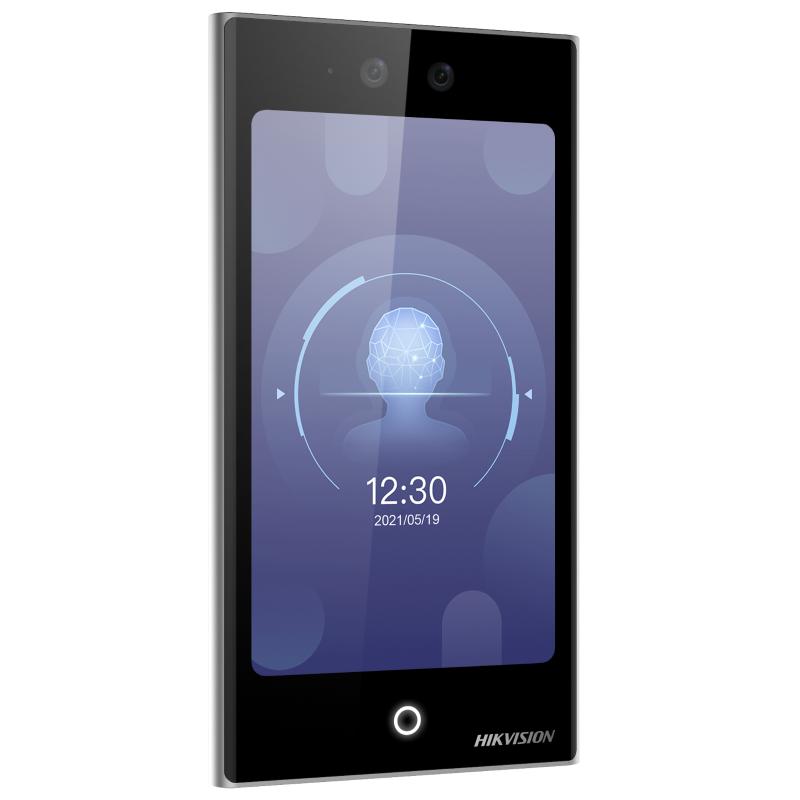

The Hikvision DS‑K1T673DWX is a professional-grade face recognition terminal engineered to meet modern access control demands with precision, speed, and reliability. Equipped with a 7-inch IPS touch display and a 2MP wide-angle camera, it provides real-time facial verification in less than 0.2 seconds per person, with over 99% accuracy, even in challenging lighting conditions.
This terminal supports multi-factor authentication including:
Its capacity is ideal for medium to large installations, with storage for:
It also supports multi-face detection, recognizing up to 5 individuals simultaneously, making it perfect for managing group entry without delay.
Built-in features include:
-
Integrated access controller (for door lock, exit button, alarm, tamper input/output)
-
TCP/IP, RS-485, Wiegand, and Wi-Fi (802.11 b/g/n) for flexible networking
-
HDMI output and USB interface for integration with external modules
-
Anti-spoofing capabilities to detect photos or video replay attacks
-
Audio prompt feedback and live video preview
Installation and environmental durability:
-
IP65 weather-resistant housing
-
Operating temperature range: –30 °C to +60 °C
-
Humidity resistance up to 90% non-condensing
-
Mountable design for walls or kiosks (mounting bracket optional)
Typical Use Cases:
1. Corporate Offices:
Streamline employee entry while maintaining secure zones. Integration with attendance tracking simplifies HR operations.
2. Education Facilities:
Manage student, staff, and visitor access while enabling contactless entry with face mask detection for health compliance.
3. Factories and Warehouses:
Control shift-based entry with time logs and enforce safety protocols using mask detection.
4. Residential Complexes and Gated Communities:
Enable secure, cardless entry for residents and log visitor access for traceability.
5. Hospitals and Clinics:
Ensure contactless, hygienic entry with mask compliance—especially critical in health-sensitive areas.
6. Transportation Hubs and Public Buildings:
Process large volumes of people quickly and accurately, maintaining detailed audit trails for security compliance.
Frequently Asked Questions (FAQs):
Q1: Can the DS-K1T673DWX be used outdoors?
Yes, it has an IP65-rated housing, making it suitable for outdoor installations when protected from direct rain exposure. It is built to operate in harsh temperatures and high humidity.
Q2: Does it support Wi-Fi?
Yes. The unit includes built-in 802.11 b/g/n Wi-Fi, allowing wireless network integration if cabling is not available.
Q3: How many people can be recognized at once?
Up to 5 faces can be detected simultaneously, making it suitable for group entries at gates or turnstiles.
Q4: Is it compatible with access control systems?
Yes. The terminal features built-in door relay controls, Wiegand and RS-485 communication, and integrates easily with Hikvision or third-party access systems.
Q5: Does it require an internet connection?
No. It can function on a local area network (LAN) without internet access. However, internet is needed for remote access or firmware updates.
Q6: Is facial recognition affected by masks or glasses?
The system includes mask detection and is designed to accurately identify faces even when wearing glasses, masks, or hats.
Q7: How is data stored and retrieved?
User data and logs are stored internally. Events and configurations can be accessed through the device interface, iVMS‑4200 software, or a web browser interface on the network.
Q8: What happens during a power outage?
The device requires external 12V DC power or PoE (depending on model). A UPS (uninterruptible power supply) is recommended to ensure continuous operation during outages.
Q9: Is this device suitable for time and attendance tracking?
Yes, it supports event logging, schedule management, and can be integrated with time attendance modules via software.
Q10: Can this be used in multilingual environments?
Yes. The terminal supports multiple languages, including English, Chinese, Spanish, French, Arabic, Japanese, Korean, and more.
