Product SKU: DS-2CD3666G2HT-LIZS(Y)
Product Overview

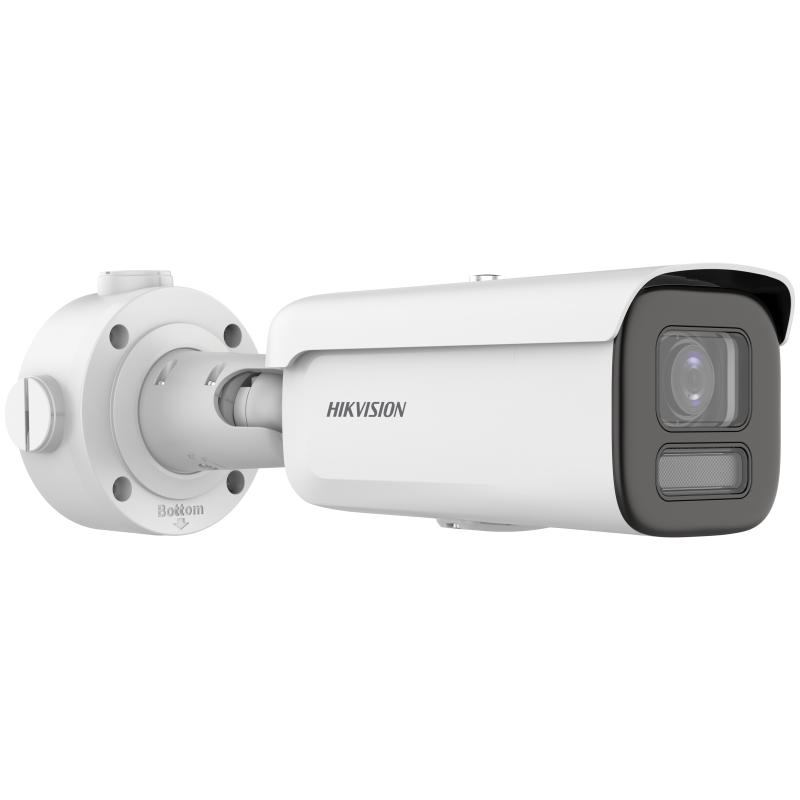

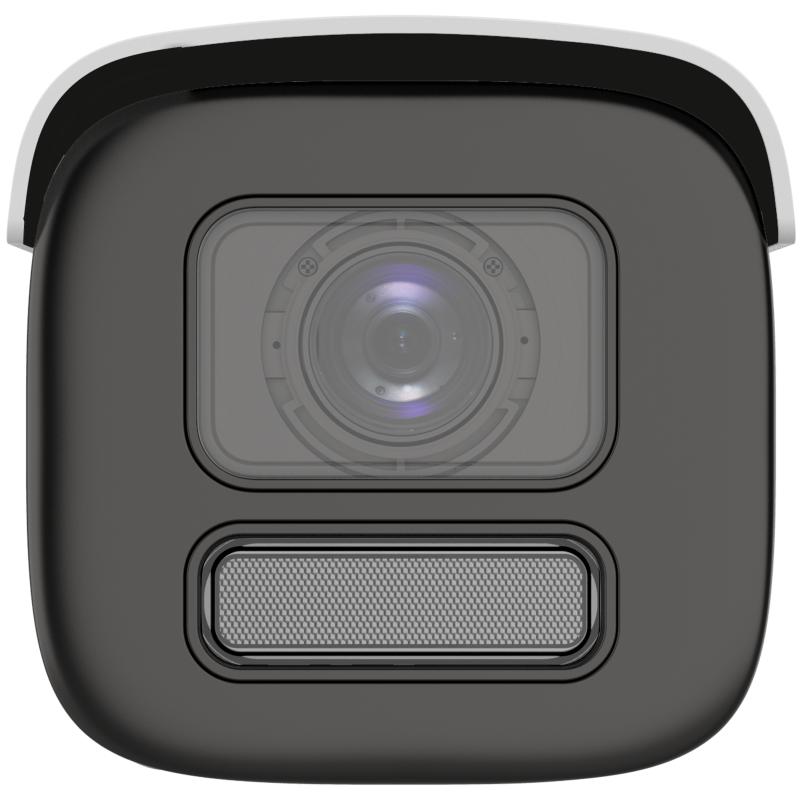

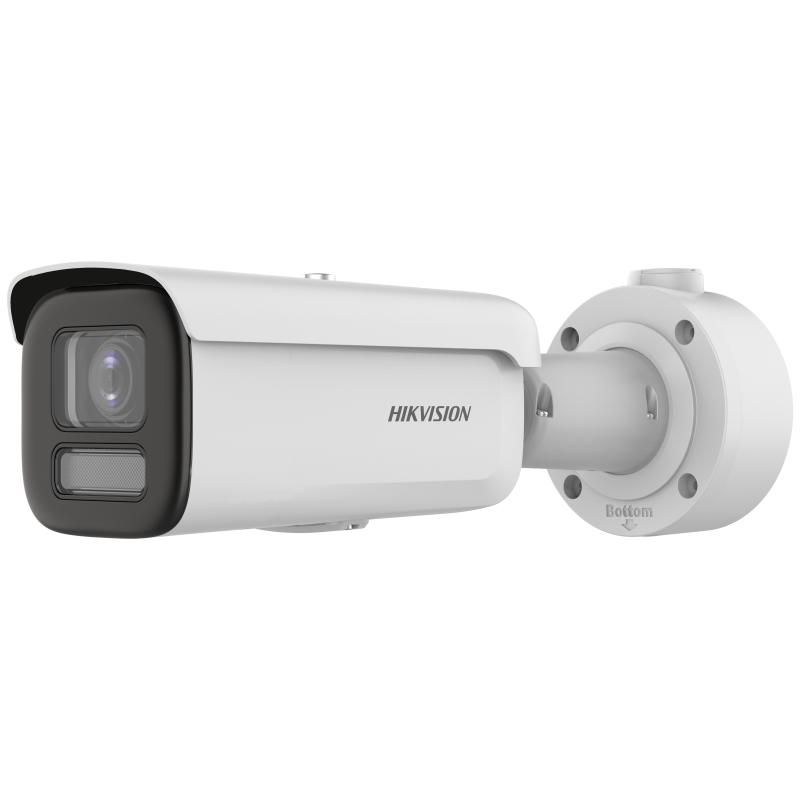

The DS-2CD3666G2HT-LIZS(Y) from Hikvision is a 6 MP ultra-series smart hybrid bullet network camera designed to deliver high-resolution imaging and advanced analytics for demanding security applications. With a motorised varifocal 2.7–13.5 mm lens and long-range smart illumination up to 60 m, it offers exceptional clarity in both day and night settings. Featuring the industry-leading DarkFighter S technology for low-light, plus deep-learning-based human & vehicle classification, this camera is purpose-built for professional surveillance installations where reliability, intelligence and performance matter.
Why Choose the DS-2CD3666G2HT-LIZS(Y)
Choosing the DS-2CD3666G2HT-LIZS(Y) means investing in a camera that not only captures crisp 6 MP (3200 × 1800) resolution images but also intelligently filters activity with deep-learning analytics to reduce false alarms and improve actionable outcomes. Its motorised 2.7–13.5 mm lens enables precise zoom and framing after installation, offering flexibility across different environments. The combination of DarkFighter S low-light performance, 120 dB wide dynamic range (WDR), and Smart Hybrid Light ensures reliable performance across high-contrast and challenging lighting scenarios. Built for harsh outdoor use with IP67/IP NEMA 4X (-Y) and IK10 vandal protection, it stands out for durability and smart detection—offering superior value compared to standard bullet cameras lacking hybrid lighting or AI-powered analytics.
Key Capabilities
High-Resolution Imaging: With a maximum resolution of 3200 × 1800 (6 MP), the DS-2CD3666G2HT-LIZS(Y) delivers sharp, detailed footage that enhances identification and forensic clarity in both live and recorded video.
Motorised Varifocal Lens (2.7–13.5 mm): The motorised lens allows remote adjustment of zoom and focus, enabling installers and integrators to optimise field of view and framing post-installation—minimising ladder time and fine-tuning coverage.
Deep-Learning Human & Vehicle Classification: Built-in AI enables the camera to distinguish human and vehicle targets, improving alarm accuracy by reducing false triggers from irrelevant motion—so you get alerts you can trust.
Smart Hybrid Illumination (Up to 60 m): Features both IR and white-light illumination up to 60 metres, automatically switching to ensure clear colour and monochrome images depending on the scene—ideal for high-security entrances or perimeter zones.
Rugged Outdoor Build with IP67/NEMA 4X and IK10: Constructed with a metal front cover, body and bracket, it’s rated IP67 and IK10 (and NEMA 4X for the “-Y” variant) to withstand harsh weather, vandalism and corrosion—perfect for external installations in Australia’s varied climate.
Key Features
-
6 MP Sensor with DarkFighter S Technology: A large 1/1.8″ CMOS sensor delivers excellent image detail and low-light performance, enabling colour or monochrome viewing even in very dim environments.
-
120 dB Wide Dynamic Range (WDR): Ensures clear visibility in scenes with strong contrasts, such as entrances or backlit windows, by balancing extreme light and shadow.
-
Efficient H.265+/H.265 Compression: Supports advanced codec standards to reduce bandwidth and storage usage while maintaining high-quality video—ideal for network efficiency.
-
Built-in HEOP (Hikvision Embedded Open Platform): With 1.5 TOPS computing power, 40 MB open resources, 350 MB smart RAM and 2 GB eMMC storage, the camera supports third-party applications, enabling customisation and integration into complex systems.
Specifications Summary
| Feature |
Specification |
| Resolution |
6 MP (3200 × 1800) |
| Lens Options |
Motorised varifocal 2.7–13.5 mm (horizontal FOV 112.3°–41.2°) |
| Illumination |
Smart Hybrid (IR + White Light) up to 60 m |
| WDR |
120 dB |
| Protection Rating |
IP67, IK10; NEMA 4X for “-Y” model |
| Power Supply |
12 V DC or PoE IEEE 802.3at Class 4 (max. 18 W) |
Ideal Use Cases
- Perimeter Security – Ideal for large outdoor zones such as factory fences, car parks or storage yards thanks to its long-range illumination and rugged weather-proof construction.
- Entrance Monitoring – The varifocal lens allows precise framing of building entries, and intelligent human/vehicle classification reduces nuisance alarms from passing traffic or wildlife.
- Critical Infrastructure – With its HEOP platform and open SDK support, this camera suits integration into advanced security ecosystems for transport hubs, data centres or campus-wide systems.
Choosing Between the 2.7–13.5 mm Lens
The DS-2CD3666G2HT-LIZS(Y) offers a motorised varifocal lens spanning 2.7 mm to 13.5 mm—giving you coverage flexibility for your installation:
| Lens |
Field of View |
Best For |
Notes |
| 2.7 mm |
Approx. horizontal 112.3° (wide) |
Open areas, wide coverage |
Ideal for broad zones where you want to cover as much scene as possible. |
| 13.5 mm |
Approx. horizontal 41.2° (narrow) |
Targeted areas, longer distance |
Best for detailed monitoring of entrances or driveways where specific framing is critical. |
Tip:
Choose near 2.7 mm for wide-angle overview coverage.
Choose closer to 13.5 mm for zoomed, detailed surveillance over distance.
FAQs
- Can this camera operate in very low light?
Yes — the DS-2CD3666G2HT-LIZS(Y) features DarkFighter S technology which includes a large sensor and high-sensitivity optics, enabling operation down to 0.0028 Lux (F1.2, AGC ON) in colour mode, and 0 Lux with smart illumination. It delivers usable footage even in very poorly lit scenes.
- Does this camera support smart analytics for human and vehicle detection?
Yes — it includes deep-learning based classification of humans and vehicles, enabling intelligent perimeter protection such as line crossing and intrusion detection that trigger only when relevant targets are detected, reducing false alarms from motion like branches or animals.
- Is it suitable for outdoor installation in harsh environments?
Absolutely — it is rated IP67 for dust and water resistance, IK10 for impact protection, and the “-Y” variant also carries NEMA 4X anti-corrosion protection. It operates from -30 °C to 60 °C and up to 95% humidity, ideal for Australian conditions.
