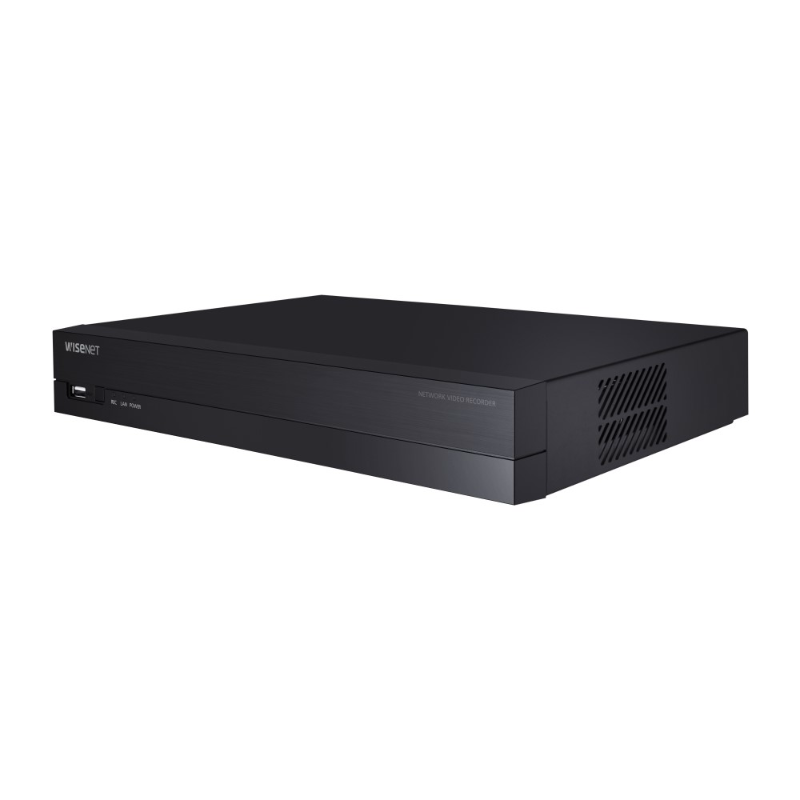

Hanwha XRN-420S 4-Channel AI Network Video Recorder (NVR)

Equipped with four PoE ports (LAN, 10/100) and one WAN port (1Gbps), the XRN-420S simplifies installation through plug-and-play functionality. Its AI Search feature, when paired with Wisenet AI cameras, enables advanced object attribute searches, allowing users to filter footage based on specific characteristics such as clothing color, gender, and vehicle type.

The NVR supports a recording bandwidth of up to 50Mbps and offers local monitoring via HDMI (up to 3840 x 2160) and VGA outputs. It accommodates a single SATA HDD up to 6TB, providing ample storage for extensive recording needs. Additional features include ARB (Automatic Recovery Backup) support, P2P service with QR code connection for easy remote access, and enhanced security measures like IP address filtering and user access logs

With its compact design, measuring 300mm x 47.1mm x 208.4mm and weighing 1.06kg, the Hanwha XRN-420S offers a reliable and intelligent solution for modern surveillance requirements.

Key Features

• Camera Support: Up to 4 channels, 8MP resolution

• Compression Formats: H.265, H.264, MJPEG

• AI Search: Object attribute search with Wisenet AI cameras

• Recording Bandwidth: Maximum 50Mbps

• PoE Ports: 4 LAN (10/100), 1 WAN (1Gbps)

• Storage: 1 SATA HDD slot, up to 6TB

• Video Outputs: HDMI (3840 x 2160), VGA

• Security Features: IP filtering, user access logs, encryption

• Remote Access: P2P service with QR code connection

• Dimensions: 300mm x 47.1mm x 208.4mm

• Weight: 1.06kg
