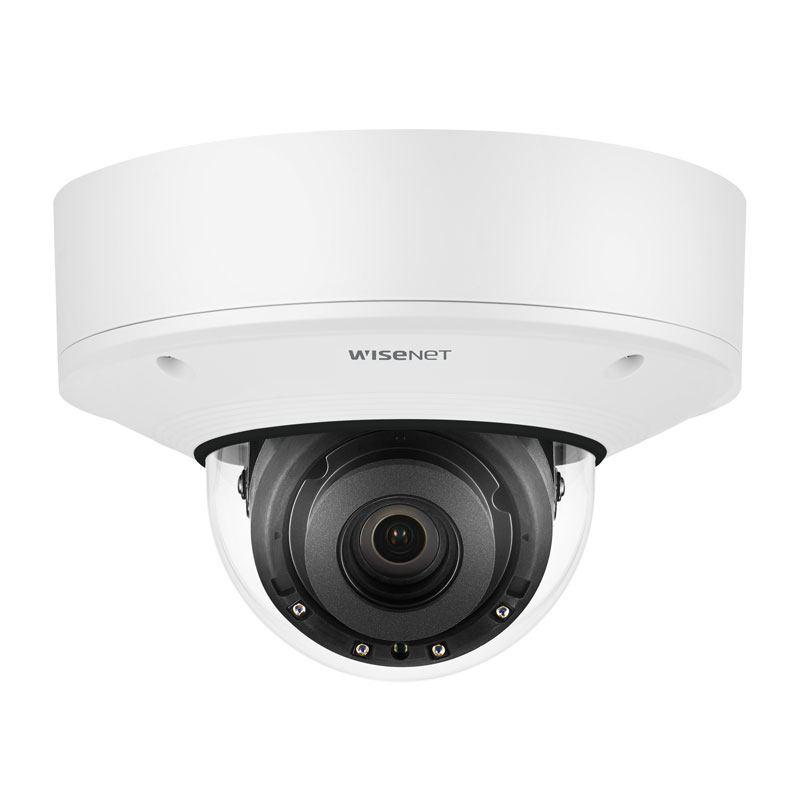

Hanwha Wisenet PNV-A9081R 4K AI Outdoor Vandal Dome Camera, 30fps, WDR, IR, IP67, 4.5-10mm

Name: Hanwha Wisenet PNV-A9081R 4K AI Outdoor Vandal Dome Camera, 30fps, WDR, IR, IP67, 4.5-10mm
Brand: Hanwha
SKU: PNV-A9081R
Price: 2377.30 AUD
Availability: InStock

Hanwha’s HAN-PNV-A9081R categorises what it sees into broad categories such as ‘person’, ‘face’, ‘vehicle’ and ‘licence plate’. Delving deeper, Wisenet artificial intelligence algorithms are quickly and accurately able to identify the different attributes of the objects within the camera’s field of view. This camera is also equipped with a BestShot feature which ensures that only the most suitable images of classified objects are sent to the storage server. Users have the option to set the image resolution at 2MP for full video streaming or use the BestShot feature to minimise bandwidth and storage requirements. Store operators are able to combine the HAN-PNV-A9081R with the Retail Insight v2.0 business intelligence application, to analyse what is happening within their stores, with the camera using attribution identification to help track customer demographics, age and gender. All of these features make this camera suitable for a range of applications.

HAN-PNV-A9081R Datasheet

$2,377.30 inc GST +3 Year Warranty & Support

Max. 4K resolution
0.05Lux at F1.6 (colour), 0Lux (B/W, IR LED on)
Day and night (ICR), WDR (120dB)
H.265, H.264, MJPEG codec, WiseStream II
Video analytics based on AI: object detection and classification (person, face, vehicle, licence plate)
Compatible with Wisenet Retail Insight v2.0 for business intelligence
BestShot
Age/gender based people counting
Heatmap
Queue management
Modular structure for easy installation

1/1.8″ 8MP CMOS progressive scan
4.5-10mm motorised varifocal lens
Colour: 0.05 lux (F1.6, 1/30sec), B/W: 0 lux (IR LED on)
RJ-45 10/100/1000 base-T ethernet, PoE
Micro SD / SDHC / SDXC 2 slots 512GB
IP66/IP67/IP6K9K and IK10+, NEMA4X rating

SKU: PNV-A9081R Categories: Hanwha 8MP, Hanwha AI Cameras, Hanwha Outdoor Cameras, Hanwha P Series (Premium 4K Res AI Solutions), Hanwha Vision CCTV Cameras & Security Systems Tags: Hanwha Vision, HV-HCD-7070RA Brand: Hanwha

Features

4 Megapixel Resolution: This camera provides clear and detailed images with a resolution of 4 megapixels, allowing for better identification of objects and individuals.
Wisenet HD+ Technology: The Wisenet HD+ technology enhances image clarity and sharpness, delivering high-quality video footage for surveillance purposes.
Indoor Dome Design: The dome design of the camera makes it suitable for indoor installation, providing discreet surveillance while blending in with the environment.
Infrared LEDs: Equipped with infrared LEDs, the camera can capture clear video footage even in low-light or nighttime conditions, extending its surveillance capabilities.
Wide Dynamic Range (WDR): WDR technology helps in capturing clear images even in challenging lighting conditions where there are both bright and dark areas within the frame.
Motion Detection: The camera supports motion detection functionality, which triggers recording when motion is detected within its field of view, enhancing security and reducing storage space usage.
Power over Ethernet (PoE): With PoE support, the camera can be powered and connected to the network using a single Ethernet cable, simplifying installation and reducing cable clutter.
Remote Monitoring: Users can remotely monitor the camera feed from anywhere with an internet connection using compatible devices such as smartphones, tablets, or computers.
H.265 Compression: The camera likely uses the H.265 video compression standard, which efficiently reduces the file size of recorded footage without compromising on image quality, saving storage space and bandwidth.
Privacy Masking: This feature allows users to block out specific areas within the camera’s field of view, ensuring privacy by preventing the recording of sensitive or unauthorized areas.

Specifications

VIDEO

- Imaging Device: 1/3″ 4M CMOS
- Total Pixels: 2,720(H) x 1,536(V)
- Effective Pixels: 2,688(H) x 1,520(V)
- Scanning System: Progressive Scan
- Min. Illumination: Color: 0.16 Lux (F1.6), B/W: 0 Lux (IR LED on)
- S/N Ratio: 52dB (AGC off, Weight on)
- Video Output: BNC (AHD), Additional CVBS for installation (2Pin connector type)
- Resolution: 2560 x 1440
- Max. Framerate: 30fps @ 4M, 25fps @ 4M

PAN / TILT / ROTATE

- Pan / Tilt / Rotate Range: 0° ~ 350° / 0° ~ 63° / 0° ~ 355°

LENS TYPE

- Focal Length (Zoom Ratio): 3.2 ~ 10mm (3.1x) varifocal
- Max. Aperture Ratio: F1.6
- Angular Field of View: H : 93.48˚(Wide) ~ 29.44˚(Tele), V : 50.47˚(Wide) ~ 16.64˚(Tele), D : 112.53˚(Wide) ~ 33.7˚(Tele)
- Min. Object Distance: 0.5m (1.64ft)
- Focus Control: Manual
- Lens Type: DC Auto Iris
- Mount Type: Board-in Type

OPERATIONAL

- On Screen Display: Multi-language Support (14) – English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish
- Day & Night: Auto (ICR) / Color / B/W
- Backlight Compensation: Off / User BLC / HLC
- Wide Dynamic Range: D-WDR (Off / On)
- Digital Noise Reduction: 2D DNR
- Motion Detection: Off / On (4 zones)
- Privacy Masking: Off / On (2 zones rectangle)
- Gain Control: Off / Low / Middle / High / Very High
- White Balance: ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°)
- Electronic Shutter Speed: 1/30sec ~ 1/12,000sec, 1/25sec ~ 1/12,000sec
- Reverse: Off / H-Rev / V-Rev
- Alarm (MD) output: 1
- Remote Control Interface: Coaxial
- Protocol: AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron)
- IR Distance: 20m (65.62ft)
- Video Transmission Distance: 500m (5C2V Coaxial cable)

ENVIRONMENTAL

- Operating Temperature / Humidity: -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH

ELECTRICAL

- Input Voltage: Dual (24V AC ±10% & 12V DC ±10%)
- Power Consumption: Max. 5.8W

MECHANICAL

- Color / Material: Ivory / Plastic
- Dimensions (WxH): Ø119.8 x 98.5mm (Ø4.72″ x 3.88″)
- Weight: 320g (0.71 lb)

Installation and Maintenance

Plan Placement: Decide where you want to install the camera. Consider factors like the field of view, lighting conditions, and accessibility for cabling.
Mounting: Use the provided mounting template to mark the location for drilling holes. Make sure the mounting surface is sturdy and can support the weight of the camera.
Drilling Holes: Drill holes according to the markings made in the previous step. Use appropriate anchors if necessary to secure the mounting brackets.
Mounting the Camera: Attach the camera to the mounting bracket securely.
Cabling: Connect the necessary cables for power and data transmission. For indoor cameras, this usually involves connecting to a power source and a network switch or recorder.
Configuration: Access the camera’s interface either through a web browser or dedicated software provided by Hanwha. Follow the instructions to set up network settings, image settings, recording schedules, etc.
Testing: Once configured, test the camera to ensure it’s functioning properly. Verify the image quality, motion detection, night vision (if applicable), and remote access.
Maintenance: Regular maintenance ensures the camera operates efficiently over time. This includes cleaning the lens and housing, checking connections, updating firmware, and adjusting settings as needed.
Troubleshooting: If you encounter any issues with the camera, refer to the user manual or contact technical support for assistance. Common issues might include connectivity problems, image quality issues, or firmware glitches.
