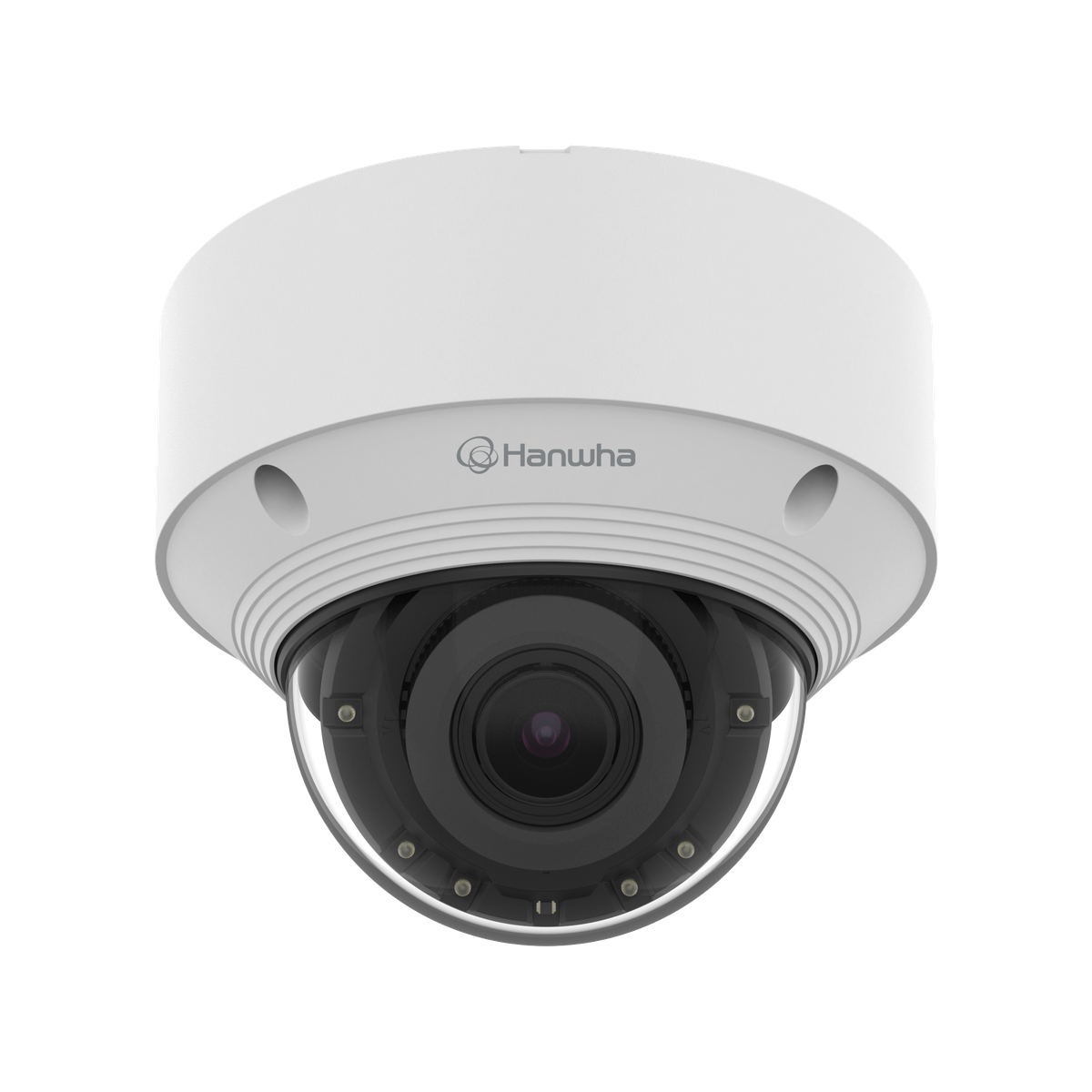

Hanwha Vision QNV-C9083R 8MP AI IR Vandal Dome Camera Motorised Zoom Rugged, Smart Surveillance


The Hanwha Vision QNV-C9083R is an 8MP AI-enabled vandal-resistant dome camera featuring a motorised varifocal zoom lens (3.2–10.2 mm), up to 30 m IR night vision, on-board analytics, and IP66/IK10 protection — ideal for indoor and outdoor security installations.

$986.00 inc GST +3 Year Warranty & Support

The QNV-C9083R from Hanwha Vision delivers ultra-clear 8 MP video with advanced AI analytics and a motorised varifocal zoom lens that lets installers adjust the field of view remotely. Rugged and reliable, this dome camera is designed for challenging outdoor and indoor environments, offering superior image quality day and night.

Key Features & Benefits

Feature Description Benefit / Why It Matters
8 MP resolution @ 30 fps Captures crisp 3840×2160 video in H.265/H.264/MJPEG. Excellent detail for identification and evidence
Motorised varifocal zoom lens (3.2–10.2 mm, 3.2× optical zoom) Remotely adjust field of view from wide-angle to telephoto. Flexible coverage without manually refocusing or changing lenses
0.06 lux (color) / 0.006 lux (B/W) High sensitivity in low light with true day/night performance. Clear images in dim conditions
IR illumination up to 30 m Integrated IR LEDs enable night vision. Reliable monitoring even in total darkness
AI-powered analytics Detects and classifies people and vehicles, plus supports line-crossing, intrusion, and loitering detection. Reduces false alarms and improves security response
Wide Dynamic Range (120 dB) Handles challenging lighting such as entrances and carparks. Delivers balanced exposure in bright and dark areas
WiseStream III & H.265 compression Smart bandwidth control lowers data usage. Cuts storage and network costs
Rugged outdoor design IP66 weatherproof & IK10 vandal-resistant with hard-coated dome. Withstands tough conditions and tampering
Edge recording microSD/SDHC/SDXC slot up to 256 GB. Ensures footage is stored even if the network is down
PoE support Single cable for power and data. Simplifies installation

Use Cases

  • Carparks & vehicle access control
    Motorised zoom lets you focus on number plates or vehicles entering and leaving, while AI analytics reduce irrelevant triggers.

  • Building entrances & lobbies
    Zoom in for facial recognition-level detail or widen the view for general area coverage.

  • Perimeter & outdoor surveillance
    IR night vision up to 30 m and rugged housing ensure round-the-clock protection in harsh environments.

  • Retail & commercial sites
    Adjust lens remotely to optimise coverage as layouts change — ideal for protecting cash handling areas, loading bays, and storefronts.

  • Industrial sites & warehouses
    Suitable for dusty or exposed areas, with flexible lens adjustment for gates, corridors, and yard coverage.


Frequently Asked Questions (FAQ)

Q: What is the motorised zoom range?
A: The camera features a 3.2–10.2 mm motorised varifocal lens (3.2× optical zoom), allowing installers to adjust the field of view and focus remotely without physically opening the housing.

Q: Does the zoom affect resolution?
A: No. The camera maintains its full 8 MP resolution across the entire zoom range, delivering sharp images whether wide or zoomed in.

Q: How far can it see at night?
A: The built-in IR illumination provides clear night vision up to 30 m in total darkness.

Q: Is it suitable for outdoor installations?
A: Yes. It is IP66 weatherproof and IK10 vandal-resistant, designed for harsh conditions and exposed locations.

Q: Can it store video locally?
A: Yes. It supports a microSD/SDHC/SDXC card up to 256 GB for edge recording.

Q: What power source is required?
A: The camera supports Power over Ethernet (PoE), so a single network cable supplies both data and power.


Features

  • 4 Megapixel Resolution: This camera provides clear and detailed images with a resolution of 4 megapixels, allowing for better identification of objects and individuals.
  • Wisenet HD+ Technology: The Wisenet HD+ technology enhances image clarity and sharpness, delivering high-quality video footage for surveillance purposes.
  • Indoor Dome Design: The dome design of the camera makes it suitable for indoor installation, providing discreet surveillance while blending in with the environment.
  • Infrared LEDs: Equipped with infrared LEDs, the camera can capture clear video footage even in low-light or nighttime conditions, extending its surveillance capabilities.
  • Wide Dynamic Range (WDR): WDR technology helps in capturing clear images even in challenging lighting conditions where there are both bright and dark areas within the frame.
  • Motion Detection: The camera supports motion detection functionality, which triggers recording when motion is detected within its field of view, enhancing security and reducing storage space usage.
  • Power over Ethernet (PoE): With PoE support, the camera can be powered and connected to the network using a single Ethernet cable, simplifying installation and reducing cable clutter.
  • Remote Monitoring: Users can remotely monitor the camera feed from anywhere with an internet connection using compatible devices such as smartphones, tablets, or computers.
  • H.265 Compression: The camera likely uses the H.265 video compression standard, which efficiently reduces the file size of recorded footage without compromising on image quality, saving storage space and bandwidth.
  • Privacy Masking: This feature allows users to block out specific areas within the camera’s field of view, ensuring privacy by preventing the recording of sensitive or unauthorized areas.

Specifications

VIDEO

    • Imaging Device: 1/3″ 4M CMOS
    • Total Pixels: 2,720(H) x 1,536(V)
    • Effective Pixels: 2,688(H) x 1,520(V)
    • Scanning System: Progressive Scan
    • Min. Illumination: Color: 0.16 Lux (F1.6), B/W: 0 Lux (IR LED on)
    • S/N Ratio: 52dB (AGC off, Weight on)
    • Video Output: BNC (AHD), Additional CVBS for installation (2Pin connector type)
    • Resolution: 2560 x 1440
    • Max. Framerate: 30fps @ 4M, 25fps @ 4M

PAN / TILT / ROTATE

    • Pan / Tilt / Rotate Range: 0° ~ 350° / 0° ~ 63° / 0° ~ 355°

LENS TYPE

    • Focal Length (Zoom Ratio): 3.2 ~ 10mm (3.1x) varifocal
    • Max. Aperture Ratio: F1.6
    • Angular Field of View: H : 93.48˚(Wide) ~ 29.44˚(Tele), V : 50.47˚(Wide) ~ 16.64˚(Tele), D : 112.53˚(Wide) ~ 33.7˚(Tele)
    • Min. Object Distance: 0.5m (1.64ft)
    • Focus Control: Manual
    • Lens Type: DC Auto Iris
    • Mount Type: Board-in Type

OPERATIONAL

    • On Screen Display: Multi-language Support (14) – English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish
    • Day & Night: Auto (ICR) / Color / B/W
    • Backlight Compensation: Off / User BLC / HLC
    • Wide Dynamic Range: D-WDR (Off / On)
    • Digital Noise Reduction: 2D DNR
    • Motion Detection: Off / On (4 zones)
    • Privacy Masking: Off / On (2 zones rectangle)
    • Gain Control: Off / Low / Middle / High / Very High
    • White Balance: ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°)
    • Electronic Shutter Speed: 1/30sec ~ 1/12,000sec, 1/25sec ~ 1/12,000sec
    • Reverse: Off / H-Rev / V-Rev
    • Alarm (MD) output: 1
    • Remote Control Interface: Coaxial
    • Protocol: AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron)
    • IR Distance: 20m (65.62ft)
    • Video Transmission Distance: 500m (5C2V Coaxial cable)

ENVIRONMENTAL

    • Operating Temperature / Humidity: -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH

ELECTRICAL

    • Input Voltage: Dual (24V AC ±10% & 12V DC ±10%)
    • Power Consumption: Max. 5.8W

MECHANICAL

    • Color / Material: Ivory / Plastic
    • Dimensions (WxH): Ø119.8 x 98.5mm (Ø4.72″ x 3.88″)
    • Weight: 320g (0.71 lb)

Installation and Maintenance

  • Plan Placement: Decide where you want to install the camera. Consider factors like the field of view, lighting conditions, and accessibility for cabling.
  • Mounting: Use the provided mounting template to mark the location for drilling holes. Make sure the mounting surface is sturdy and can support the weight of the camera.
  • Drilling Holes: Drill holes according to the markings made in the previous step. Use appropriate anchors if necessary to secure the mounting brackets.
  • Mounting the Camera: Attach the camera to the mounting bracket securely.
  • Cabling: Connect the necessary cables for power and data transmission. For indoor cameras, this usually involves connecting to a power source and a network switch or recorder.
  • Configuration: Access the camera’s interface either through a web browser or dedicated software provided by Hanwha. Follow the instructions to set up network settings, image settings, recording schedules, etc.
  • Testing: Once configured, test the camera to ensure it’s functioning properly. Verify the image quality, motion detection, night vision (if applicable), and remote access.
  • Maintenance: Regular maintenance ensures the camera operates efficiently over time. This includes cleaning the lens and housing, checking connections, updating firmware, and adjusting settings as needed.
  • Troubleshooting: If you encounter any issues with the camera, refer to the user manual or contact technical support for assistance. Common issues might include connectivity problems, image quality issues, or firmware glitches.
