The Golmar GL-SOUL 7W ACS Kit is a complete G2+ 2-wire video intercom and access control solution designed for homes, townhouses and small commercial premises.
This kit includes a Wi-Fi enabled 7″ touchscreen indoor monitor and a keypad-equipped outdoor door station with integrated wide-angle camera and PIN access control.
With smartphone call forwarding capability, users can answer visitors and unlock doors remotely via the supported mobile application.
Key Features

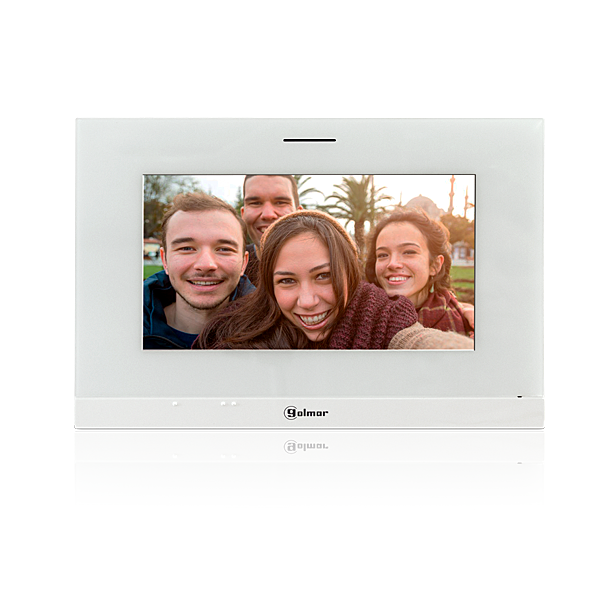

7″ Wi-Fi Touchscreen Monitor – GL-ART7W
-
7″ capacitive colour touchscreen
-
Integrated 2.4GHz Wi-Fi
-
Smartphone call forwarding
-
Inter-monitor communication
-
Stores up to 100 visitor images
-
Micro SD slot for expanded storage
-
12V DC lock release support
-
Surface mount installation
Keypad Door Station – GL-SOUL/ACCESS
-
150° wide-angle colour camera
-
Backlit metal keypad
-
Supports up to 128 address entries
-
40 permanent PIN codes + 8 temporary PIN codes
-
Dual relay outputs for door control
-
IK07 vandal resistance
-
IP54 weather resistance
-
Surface mount design
Simple 2-Wire Installation
What’s Included
-
1 × GL-SOUL/ACCESS Keypad Video Door Station
-
1 × GL-ART7W 7″ Wi-Fi Video Monitor
-
1 × FA-G2+ Power Supply Unit
-
Installation Instructions
Technical Specifications
| Feature |
Specification |
| Monitor Size |
7″ Capacitive Touchscreen |
| Wi-Fi |
2.4GHz Integrated |
| Camera Viewing Angle |
150° |
| Address Capacity |
Up to 128 |
| PIN Capacity |
40 Permanent + 8 Temporary |
| Lock Outputs |
Dual Relay Outputs |
| Weather Rating |
IP54 |
| Impact Rating |
IK07 |
| Wiring |
Non-polarised 2-wire G2+ |
| Expansion |
Additional monitors supported |
Typical Applications
✔ Residential homes
✔ Duplex and townhouse properties
✔ Small office entry systems
✔ Secure keypad-controlled entry points
✔ Remote answering while off-site
Frequently Asked Questions
Can I answer the door from my smartphone?
Yes. The GL-ART7W monitor includes built-in Wi-Fi, allowing calls to be forwarded to compatible Android and iOS smartphones.
Does this kit include keypad access?
Yes. The GL-SOUL/ACCESS door station includes a backlit keypad for PIN code entry.
How many PIN codes can be programmed?
Up to 40 permanent PIN codes and 8 temporary PIN codes can be configured.
Can the system control two doors?
Yes. The keypad panel provides dual relay outputs, allowing control of two separate doors or access points.
Is the door station suitable for outdoor use?
Yes. It is rated IP54 for weather resistance and IK07 for impact resistance.
How many monitors can be added?
The G2+ platform supports additional monitors on the same 2-wire system.
Does the monitor store visitor images?
Yes. The monitor stores up to 100 images internally, with expansion available via Micro SD card.
Is professional installation required?
Professional installation is recommended to ensure correct wiring, programming and door lock integration.
