The Golmar GL-SOUL/1 is a robust and stylish surface-mounted video door station with integrated proximity reader and colour camera. Ideal for homes, townhouses, small offices and unit complexes, it allows you to visually verify visitors while offering secure keyless entry functionality.

Built with a durable Zamak metal front and finished in graphite, this unit is designed to withstand outdoor conditions while maintaining a premium appearance.

---

Key Features

Built-In Wide Angle Colour Camera

• 120° CMOS camera

• Clear visitor identification

• Integrated LED illumination for low light environments

Integrated RFID Access Control

• Supports up to 20 proximity users

• Secure keyless entry

• Ideal for residents, staff or authorised users

Heavy Duty Call Button

• Metallic push button

• Designed for long-term reliability

• Clear visitor call indication

Dual Lock Outputs

• 12V DC 150mA lock output

• 5A relay output

• Supports two door activation scenarios

Exit Button Input

• Dedicated EXIT input

• Programmable unlock time

• Flexible access control configuration

CCTV Integration

• Analogue CCTV input supported

• Allows connection of an additional external camera

Durable Construction

• Zamak metal front panel

• Graphite finish

• IK07 vandal resistance rating

• IP44 weather resistance rating

---

Specifications

---

Installation & Compatibility

• Surface mount installation

• Compatible with Golmar SOUL monitor systems

• Suitable for residential and small commercial installations

• Ideal for villas, apartments, small offices and gated entries

---

What’s Included

• Golmar GL-SOUL/1 Door Station

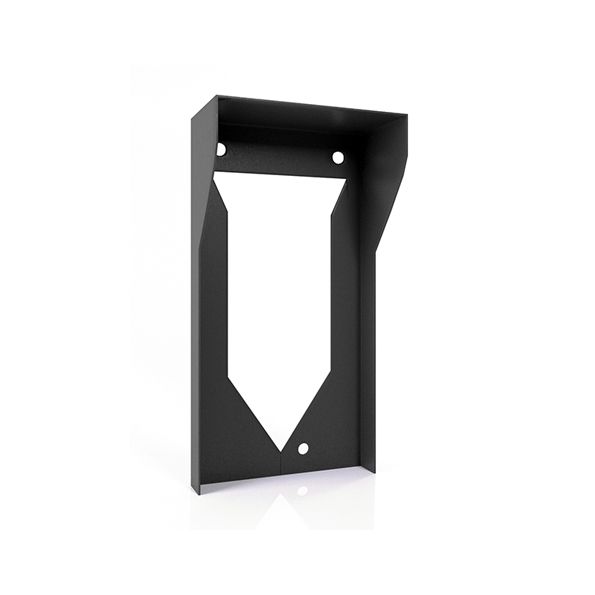

• VIS-SOUL Rain Shield

• Installation instructions

---

Frequently Asked Questions

Can this door station work with smartphone apps?

This unit is designed to work with compatible Golmar SOUL indoor monitors. Smartphone functionality depends on the monitor model being used in the system.

Does it support multiple users with access cards?

Yes. It supports up to 20 RFID proximity users.

Can I connect two separate doors?

Yes. It provides both a 12V DC output and a 5A relay output, allowing flexible door control options.

Is it suitable for outdoor installation?

Yes. It is rated IP44 for weather resistance and IK07 for vandal resistance, making it suitable for external mounting under typical conditions.

Does it record video?

The GL-SOUL/1 itself does not record. Recording capability depends on the monitor or additional recording devices integrated into the system.

Can I connect an external CCTV camera?

Yes. It supports an analogue CCTV input for additional camera integration.

Is it flush mount or surface mount?

It is designed for surface mounting and includes a rain shield.

How wide is the camera viewing angle?

The integrated camera provides a 120° wide viewing angle.
