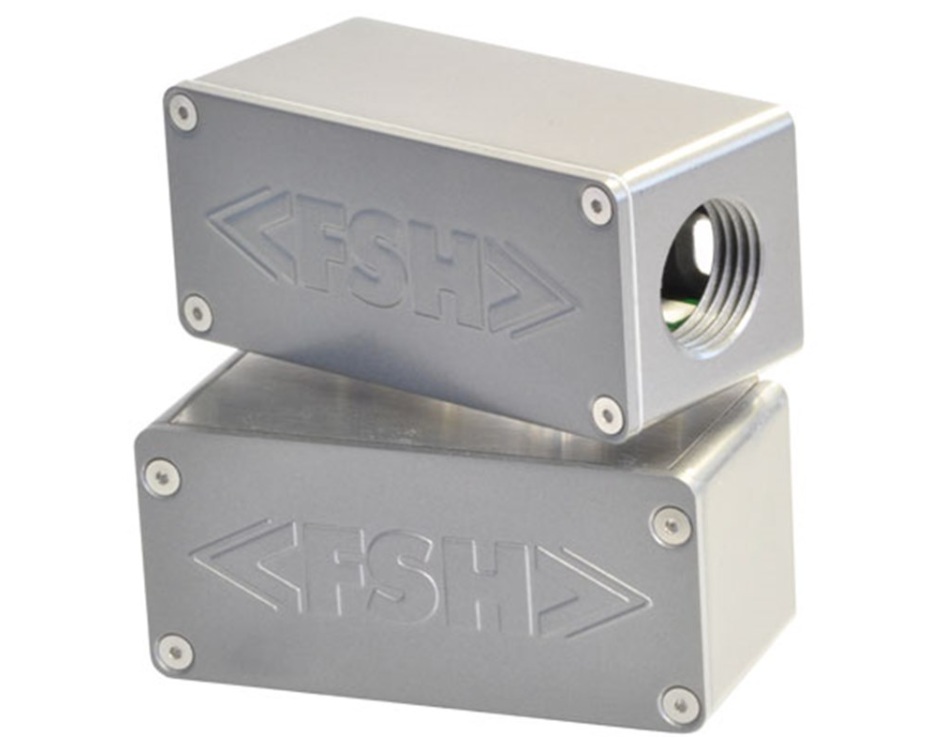

FSH FSS1-S Surface Mount High Security Reed Switch

Product SKU: FSS1-S

Product Overview

The FSH FSS1-S Surface Mount High Security Reed Switch is a professional door monitoring sensor designed for high-security environments where accurate door position detection is essential. Unlike traditional magnetic reed switches, the FSS1-S uses an advanced multi-sensor design to detect a unique magnetic footprint from a specially paired magnet array. This technology significantly improves tamper resistance and reliability, making the sensor suitable for secure facilities such as government buildings, critical infrastructure and high-risk commercial installations.

Why Choose the FSS1-S

The FSS1-S is designed for security applications where conventional door sensors may be vulnerable to tampering or bypass. Its advanced sensing technology analyses multiple magnetic characteristics including polarity, strength and position, ensuring the system recognises only the correct magnetic signature. This greatly reduces the risk of spoofing or magnetic interference. The sensor also includes built-in tamper detection and environmental protection, providing dependable monitoring in demanding security installations.

Key Capabilities

Key Features

• Seven Hall-Effect Sensors: Multiple sensors detect the unique magnetic signature of the paired magnet plate, ensuring accurate door position monitoring and reducing the risk of bypass using external magnets.

• SCEC Security Level 4 Approval: The device meets high security evaluation requirements and is approved for sensitive installations where enhanced tamper resistance is required.

• Wide Operating Voltage Range: Supports power input between approximately 10VDC and 30VDC, allowing integration with various access control and security systems.

• Alarm and Tamper Outputs: Provides alarm contacts and dedicated tamper contacts that can be connected directly to alarm panels or access control systems for monitoring and alerts.

• Door Gap Tolerance: Designed to operate with door gaps between approximately 1.5mm and 7mm while detecting door movement up to around 15mm for alarm activation.

• End-of-Line Compatibility: Internal space is provided for end-of-line modules or resistors used in monitored alarm circuits, simplifying integration with professional security systems.

Specifications Summary

• Model: FSS1-S
• Product Type: High security door monitoring sensor
• Mounting Type: Surface mount
• Operating Voltage: 10–30VDC
• Typical Current: Approximately 8–10mA
• Alarm Contacts: NO / Common contacts up to 0.25A @ 30V
• Tamper Contact: NC / Common up to 0.2A @ 30V
• Door Gap: 1.5–7mm
• Door Movement Detection: Up to 15mm
• Environmental Rating: IP67
• Security Certification: SCEC Security Level 4
• Sensors: 7 Hall-effect sensors
• Dimensions: Approximately 75 × 34 × 35mm

Ideal Use Cases

• Government and Defence Facilities – High security door monitoring where tamper resistance and accurate detection are essential.
• Critical Infrastructure Sites – Reliable door status monitoring for control rooms, data centres and restricted access areas.
• Commercial Security Installations – Ideal for doors connected to access control or alarm systems requiring secure monitoring.
• High Risk Environments – Suitable for facilities where standard magnetic door sensors may be vulnerable to interference.

FAQs

1. How does a high security reed switch differ from a standard door sensor?
   Traditional reed switches typically use a single magnet and reed contact to detect door position. High security sensors like the FSS1-S use multiple magnetic sensors that analyse a unique magnetic pattern from a matched magnet array. This technology makes it far more difficult to bypass using external magnets and improves reliability in high-security installations.
2. What does SCEC Security Level 4 mean?
   Security Level 4 certification indicates the device meets strict security evaluation requirements for high-risk applications. Products approved to this level are designed to resist tampering and provide reliable monitoring for sensitive government or critical infrastructure environments.
3. Can this sensor integrate with alarm or access control systems?
   Yes. The FSS1-S provides alarm and tamper contacts that can connect directly to intrusion alarm panels or access control systems. This allows the system to monitor door position, detect forced opening and generate alerts if the sensor housing is tampered with.

Additional Information
