Product SKU: DHI-VTO2111D-P-S3
Product Overview

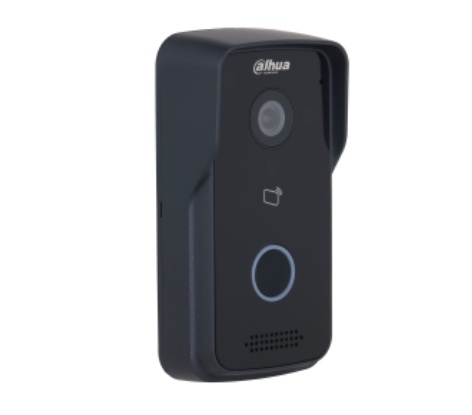

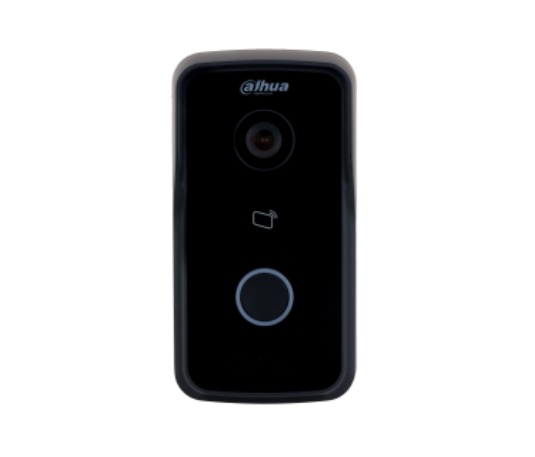

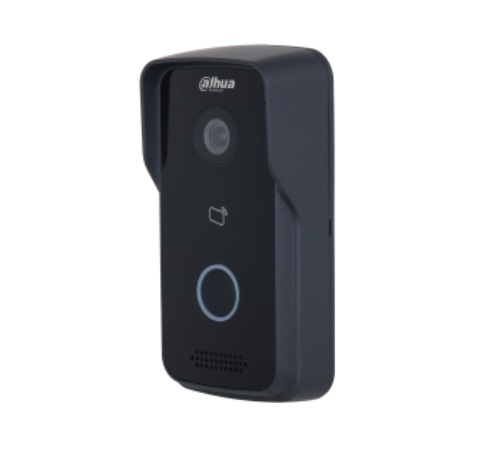

The Dahua DHI-VTO2111D-P-S3 is a compact IP villa door station designed for secure visitor communication and access control in residential properties and small commercial sites. Featuring a built-in 2MP camera, single call button and integrated RFID reader, it provides a simple yet effective entry solution. With support for two-way audio, mobile app connectivity and remote unlocking, the unit enables users to monitor and manage access from anywhere while maintaining reliable performance in outdoor environments.
Why Choose the DHI-VTO2111D-P-S3
The DHI-VTO2111D-P-S3 is ideal for single-tenant homes, villas and small offices requiring straightforward and secure access control. Its streamlined one-button design makes it easy for visitors to initiate calls, while the integrated camera ensures clear visual verification before granting entry. With multiple unlocking methods including RFID card, indoor monitor and mobile app, it offers flexibility without complexity. Its durable IP-rated construction ensures dependable performance in outdoor conditions.
Key Capabilities
2MP HD Video Intercom
Built-in 2MP camera delivers clear video with a wide viewing angle, allowing accurate identification of visitors at the door.
Single Button Call Design
Simple one-button operation enables visitors to easily initiate a call to the resident or connected device.
RFID Card Access Control
Integrated card reader supports secure access for authorised users, with storage for up to 10,000 cards.
Remote Access & Mobile App Control
Supports remote communication and door unlocking via mobile app, providing convenient access management from anywhere.
Outdoor Weatherproof Design
IP65-rated housing ensures reliable operation in outdoor environments, including exposure to rain and dust.
Key Features
-
2MP CMOS Camera: Provides clear video monitoring with wide-angle coverage for entrance areas.
-
Wide Viewing Angle (~107°): Ensures broad coverage of entry points for improved visibility.
-
IR Night Vision: Enables reliable monitoring in low-light and complete darkness with automatic illumination.
-
Two-Way Audio Communication: Allows real-time voice communication between visitor and resident via indoor monitor or mobile device.
-
Multiple Unlock Methods: Supports RFID card, indoor monitor and mobile app unlocking for flexible access control.
-
PoE Support: Simplifies installation with power and data delivered through a single Ethernet cable.
Specifications Summary
- Camera: 2MP CMOS
- Lens: Approx. 2.1–2.8mm wide-angle
- Field of View: ~107° horizontal
- Video Compression: H.265 / H.264
- Night Vision: IR illumination
- Audio: Two-way audio with built-in microphone and speaker
- Access Methods: RFID card, app, indoor monitor
- Card Capacity: Up to 10,000 cards
- Network Protocols: SIP, RTSP, TCP/IP, P2P
- Power Supply: PoE (802.3af) or 12V DC
- Protection Rating: IP65 weatherproof
Understanding Villa Door Stations
A villa door station is a simplified video intercom system designed for single residences or small buildings. It allows visitors to call occupants, who can then communicate and grant access remotely. With features such as video verification, RFID access and mobile app control, the DHI-VTO2111D-P-S3 provides an efficient and secure way to manage entry points without the complexity of large apartment systems.
Ideal Use Cases
- Residential Homes – Secure front doors and gates with video verification and remote access.
- Villas & Townhouses – Provide simple and reliable entry control for single occupants.
- Small Offices – Manage visitor access with video communication and card-based entry.
- Gated Properties – Control access points with flexible unlocking methods.
FAQs
- Can this door station work without an indoor monitor?
Yes. It can operate using a mobile app, allowing users to receive calls and unlock doors remotely without requiring an indoor unit.
- What access methods are supported?
The device supports RFID card access, remote unlocking via mobile app and unlocking through an indoor monitor.
- Is it suitable for outdoor installation?
Yes. With an IP65 weatherproof rating, it is designed for reliable outdoor use in various environmental conditions.
Additional Information
VTO2111D-P-S3_datasheet_20231227
