Product SKU: DHI-VTH2621GW-WP
Product Overview
The Dahua DHI-VTH2621GW-WP is a modern IP and Wi-Fi indoor monitor designed to provide seamless communication and control within Dahua video intercom systems. Featuring a 7-inch capacitive touchscreen with 1024 × 600 resolution, it delivers a clear and responsive interface for monitoring visitors, managing access and controlling connected devices. With built-in Wi-Fi, PoE support and two-way audio, this indoor monitor offers flexible installation and reliable operation for both residential and commercial environments.
Why Choose the DHI-VTH2621GW-WP
The DHI-VTH2621GW-WP is ideal for users seeking a simple yet powerful indoor intercom solution. Its touchscreen interface provides intuitive control, while integration with door stations and IP cameras allows real-time monitoring and communication. With both wired and wireless connectivity options, it adapts easily to different installation scenarios. The addition of alarm inputs and outputs further enhances its functionality, making it more than just an intercom display—it’s a central control point for security and access management.
Key Capabilities

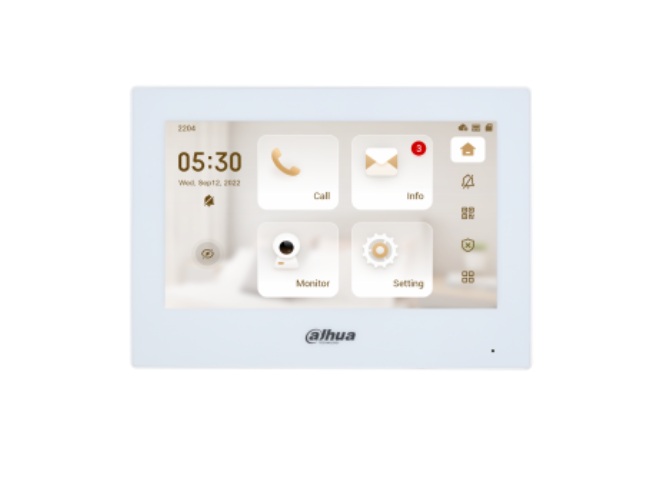

7″ Touchscreen Display
Capacitive 7-inch TFT screen with 1024 × 600 resolution provides a clear and responsive interface for viewing video and navigating menus.
IP & Wi-Fi Connectivity
Supports both wired Ethernet and Wi-Fi connection, allowing flexible installation without the need for additional cabling.
Two-Way Audio Communication
Built-in microphone and speaker enable real-time communication with visitors at the door station or connected devices.
Multi-Device Monitoring
Supports viewing of door stations and IP cameras, providing a centralised monitoring solution within the property.
Alarm Integration
Includes multiple alarm inputs and outputs, allowing integration with external sensors and security systems.
Key Features
-
7-Inch TFT Capacitive Touchscreen: Provides a smooth and intuitive user experience with clear video display.
-
1024 × 600 Resolution: Ensures sharp and detailed on-screen visuals for monitoring visitors and cameras.
-
Wi-Fi & PoE Support: Enables flexible installation using either wireless connectivity or a single Ethernet cable for power and data.
-
H.265/H.264 Video Decoding: Provides efficient video streaming with reduced bandwidth and storage requirements.
-
6 Alarm Inputs & 1 Output: Allows integration with external sensors and alarm systems for enhanced security functionality.
-
Intercom & Monitoring Functions: Supports communication with door stations and live viewing of connected IP cameras.
Specifications Summary
- Display: 7” TFT capacitive touchscreen
- Resolution: 1024 × 600
- Audio: Built-in microphone and speaker (two-way audio)
- Video Compression: H.265 / H.264
- Network: Ethernet (RJ45) and Wi-Fi (2.4GHz)
- Alarm Interface: 6 inputs / 1 output
- Power Supply: PoE (802.3af) or 12V DC
- Operating System: Embedded Linux
- Installation: Surface mount
- Operating Temperature: -10°C to +55°C
Understanding Indoor Monitors
An indoor monitor acts as the central control unit of a video intercom system, allowing users to view visitors, communicate in real time and unlock doors remotely. With touchscreen operation and integration with cameras and alarm systems, the DHI-VTH2621GW-WP enhances both convenience and security within residential and commercial properties.
Ideal Use Cases
- Residential Homes – Monitor front doors and communicate with visitors from inside the home.
- Apartments – Integrate with door stations for secure tenant communication and access control.
- Small Offices – Manage entry points and visitor access with a centralised indoor unit.
- Gated Properties – Control entry remotely with live video verification.
FAQs
- Can this monitor connect via Wi-Fi?
Yes. It supports Wi-Fi connectivity, allowing installation without running Ethernet cables where needed.
- Does it work with IP cameras?
Yes. The monitor can display video from connected door stations and compatible IP cameras for enhanced monitoring.
- Can it be powered via PoE?
Yes. It supports Power over Ethernet (PoE), enabling power and data transmission through a single cable for simpler installation.
Additional Information
VTH2621G(W)-WP_datasheet_20230914
