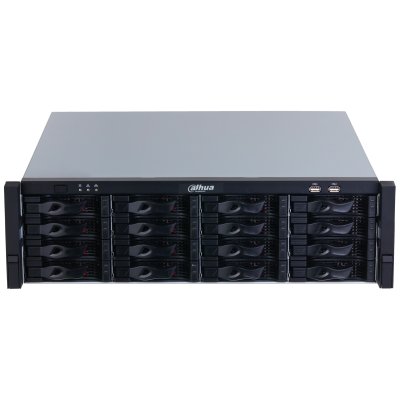

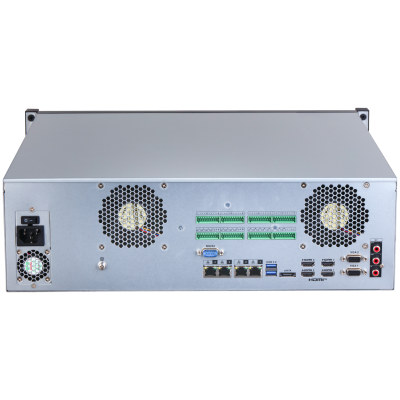

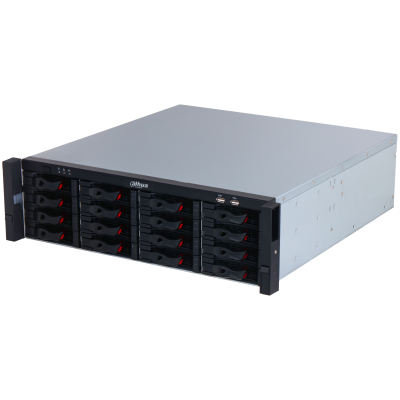

Dahua DHI-NVR616H-64-AI/ANZ 64‑Channel 3U 16‑HDD WizMind NVR with AI & AcuPick

Image	Name	Price	Buy
	4TB HDD - Surveillance HDD for DVRs & NVRs	$156.00 $286.00 inc GST +3 Year Warranty & Support	Choose one if you need to Choose one if you need to WD Purple Seagate Skyhawk 4TB HDD - Surveillance HDD for DVRs & NVRs quantity Add to cart
	3TB HDD - Surveillance HDD for DVRs & NVRs	$156.00 $209.00 inc GST +3 Year Warranty & Support	3TB HDD - Surveillance HDD for DVRs & NVRs quantity Add to cart
	2TB HDD - WD Purple / Seagate Surveillance HDD for DVRs & NVRs	$130.00 $165.00 inc GST +3 Year Warranty & Support	Choose one if you need to Choose one if you need to WD Purple Seagate Skyhawk 2TB HDD - WD Purple / Seagate Surveillance HDD for DVRs & NVRs quantity Add to cart
	6TB HDD - WD Purple / Seagate Skyhawk Surveillance Hard Drive for DVRs & NVR	$300.00 $418.00 inc GST +3 Year Warranty & Support	6TB HDD - WD Purple / Seagate Skyhawk Surveillance Hard Drive for DVRs & NVR quantity Add to cart
	8TB HDD - Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR	$430.00 $616.00 inc GST +3 Year Warranty & Support	Choose one if you need to Choose one if you need to WD Purple Seagate Skyhawk 8TB HDD - Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR quantity Add to cart
	10TB HDD - Purple Surveillance Hard Drive for DVRs & NVR	$541.00 $792.00 inc GST +3 Year Warranty & Support	10TB HDD - Purple Surveillance Hard Drive for DVRs & NVR quantity Add to cart

Performance & Video Capabilities

• Supports Smart H.265+, H.265, Smart H.264+, H.264, MJPEG encoding

• Maximum decoding: 32×1080p @30 fps simultaneous playback

• Throughput: 1280 Mbps inbound, 1280 Mbps recording, 1024 Mbps outbound

AI Intelligence

AI by Recorder supports:

• 8 channels of face detection & recognition

• Storage of up to 40 face databases / 300,000 images (48 GB capacity)

• 8-channel metadata extraction (human, vehicle, non‑vehicle)

• Perimeter protection on up to 32 channels (10 IVS rules each)

• SMD Plus on 32 channels for false-alarm filtering

AI by Camera enhances end‑to‑end analytic support:

• Face recognition, perimeter protection, SMD Plus, metadata, ANPR (license plate), stereo analysis, heat maps, people counting, PPE detection

• Capable of processing all camera channels for metadata and analytics

AcuPick: unified AI‑driven search across up to 64 channels simultaneously to locate events and faces efficiently

Storage & Redundancy

• RAID levels: 0/1/5/6/10 plus disk‑group flexible options

• iSCSI support for networked storage expansion

• N+M clustering available for high‑availability failover

• Drawer‑style chassis with hot‑swappable drives for maintenance without downtime

Interface & Integration

• Runs embedded Linux with both Web GUI and local interface access

• Video outputs: 2× VGA and 4× HDMI (HDMI up to 4K), supporting multi‑screen layouts

• ONVIF‑compliant and compatible with major brands (Panasonic, Axis, Sony, etc.)

• Protocols: HTTP(S), TCP/IP, IPv4/IPv6, FTP, SNMP, NTP, DNS, DDNS, SMTP, UPnP, IP filter, PPPoE, multicast, auto IP search, iSCSI

Recording, Playback & Alarm

• Playback: up to 16 channels simultaneously

• Modes: general, motion‑triggered, AI/intelligent, alarm‑linked, POS, tagged

• Smart playback filters: search by face, motion, metadata

• Alarm inputs/outputs: 32‑in, 16‑out

• Export options: USB or over network

• Intelligent alarm linkage: record, snapshot, buzzer/email, preset recall, access control

Certifications & Reliability

• Meets Dahua’s Security Baseline 2.3

• Enterprise‑level reliability with redundancy, clustering, and robust performance specifications

---

Use Cases

• Large public venues (transport hubs, stadiums, campuses): AI‑powered perimeter security, crowd analytics via heat maps and people counting

• Retail complexes & malls: facial recognition for VIP/loitering detection, metadata searches for customer behavior

• Government or enterprise HQ: multi-channel surveillance with AI detection, high availability, and centralized storage

• Industrial parks, logistics centers: metadata-enabled vehicle monitoring, ANPR for access control, robust redundancy

---

✅ Why Choose NVR616H‑64‑AI/ANZ over DHI‑NVR5864‑AI/ANZ

1. More HDD Capacity & Channels

• 16 HDD bays vs. 8 on the 5864 series, doubling storage capacity and flexibility

2. Superior AI Channel Scalability

• Supports 8‑channel face recognition with up to 300,000 images, versus just 2‑channel face recognition on the 5864 model

• 32‑channel perimeter protection and SMD Plus vs. 4 and 8 channels respectively

3. Higher Throughput & Performance

• Up to 1280 Mbps throughput, compared to 5864’s max 384 Mbps streams. Supports heavier camera loads and resolution inputs

4. Advanced Search & Analytics

• Full AcuPick AI search across all 64 channels, faster investigation

• Richer metadata support including ANPR, heat maps, people counting, and stereo analysis

5. Enterprise‑class Redundancy & Maintenance

• Drawer‑style hot‑swap design, N+M clustering, RAID and iSCSI support provide much higher uptime and flexibility in enterprise environments

---

Summary Table

---

✅ Final Thoughts

For installations that demand higher throughput, extensive AI channel support, large storage, and robust redundancy, the NVR616H‑64‑AI/ANZ significantly outpaces the NVR5864‑AI/ANZ. Its advanced analytics, AcuPick AI search, and enterprise-class design make it better suited for large-scale, mission-critical environments.
