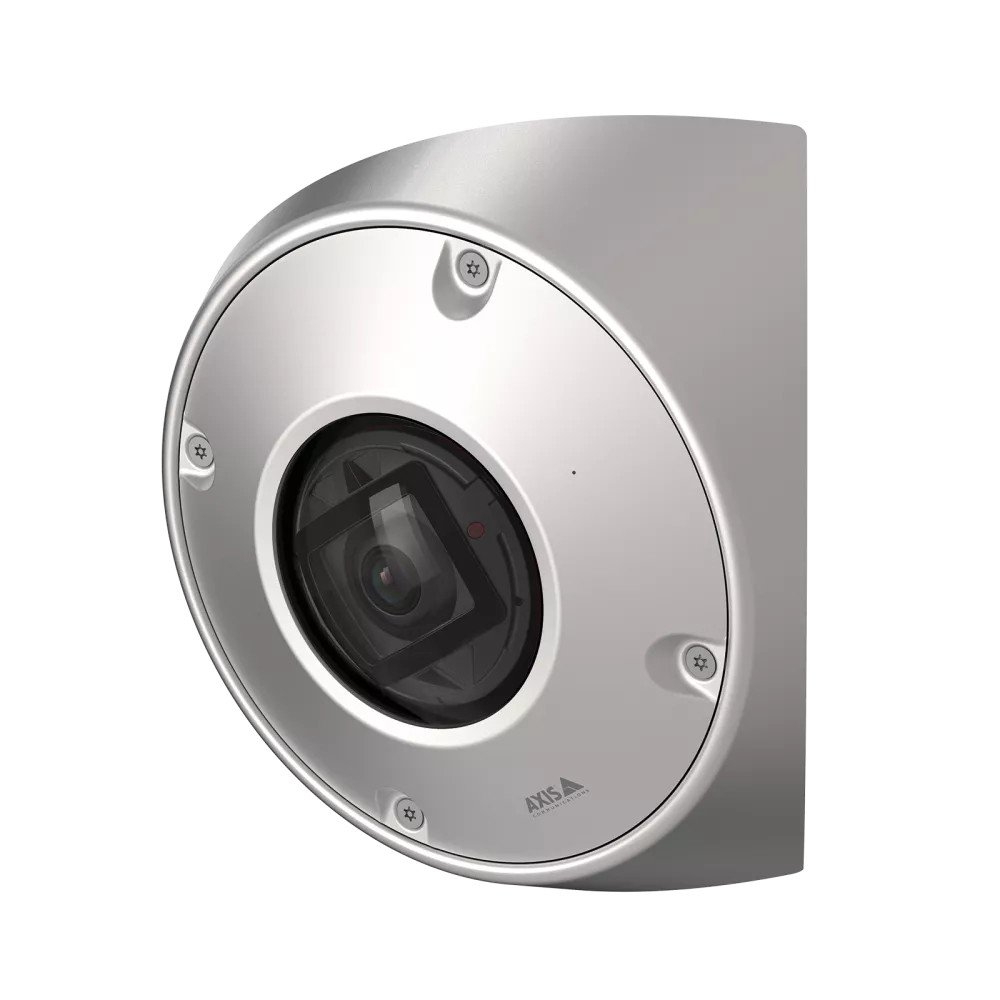

The AXIS Q9216-SLV Network Camera is engineered for high-security environments like psychiatric facilities, prisons, and behavioral health units. Its ligature-resistant (anti-ligature) design minimizes risks while offering complete coverage—mounted in a room’s corner, it spans a wide 125° horizontally and 95° vertically, eliminating blind spots.
Capture sharp 4 MP video (2304 × 1728) at up to 30 fps using a high-quality 1/2.5″ progressive-scan CMOS sensor. When daylight fades, invisible 940 nm IR illumination steps in to maintain surveillance integrity without distracting or provoking occupants. Wide Dynamic Range (WDR) ensures clarity even across high-contrast scenes.
Built rugged, the camera meets IK11 impact resistance and IP66/IP6K9K ingress protection standards, making it suitable for rigorous cleaning and harsh conditions. A built-in, removable microphone allows audio capture if needed, while tampering and shock detection, along with an indication LED, enhance operational security.
Privacy masking via adjustable polygons provides safe zones for occupant privacy. The camera supports Axis Zipstream technology, plus H.264 and H.265 codecs, to deliver efficient video compression without sacrificing quality.
Maintain strong cybersecurity with signed firmware and a TPM (FIPS 140-2 level 2) module safeguarding cryptographic keys and system integrity.
—
Use Cases
| Environment |
Why AXIS Q9216-SLV Fits Perfectly |
| Mental health facilities |
Anti-ligature design enhances patient safety while enabling constant monitoring. |
| Correctional institutions |
Rugged build and vandal-resistant casing protect against tampering in high-risk areas. |
| Aged care or group homes |
Discreet night surveillance via invisible IR preserves dignity while ensuring safety. |
| High-traffic corridors & corners |
Corner mount eliminates blind spots; wide angle covers key areas with a single camera. |
| Hygiene-critical areas |
IP6K9K rating allows thorough cleaning (high-pressure, high-temperature water) without damage. |
Spec Snapshot
| Feature |
Specification |
| Image Resolution |
4 MP (2304 × 1728) at up to 30 fps |
| Field of View |
125° horizontal × 95° vertical |
| Sensor Type |
1/2.5″ progressive-scan RGB CMOS |
| Illumination |
Invisible IR (940 nm); 0 lux coverage |
| Compression & Stream |
H.264 / H.265 with Zipstream |
| Durability |
IK11 impact, IP66/IP6K9K ingress protection |
| Audio Support |
Removable built-in microphone; two-way audio possible |
| Security Features |
TPM 2.0 (FIPS 140-2 level 2), signed firmware, tamper/shock alarms |
| Privacy Controls |
Polygonal privacy masking, indication LED |
| Power & Interfaces |
PoE, RJ45 (10/100 Mbps), HDMI output for direct viewing |
| Dimensions & Build |
Steel or white variants; robust, compact corner form factor |
|
