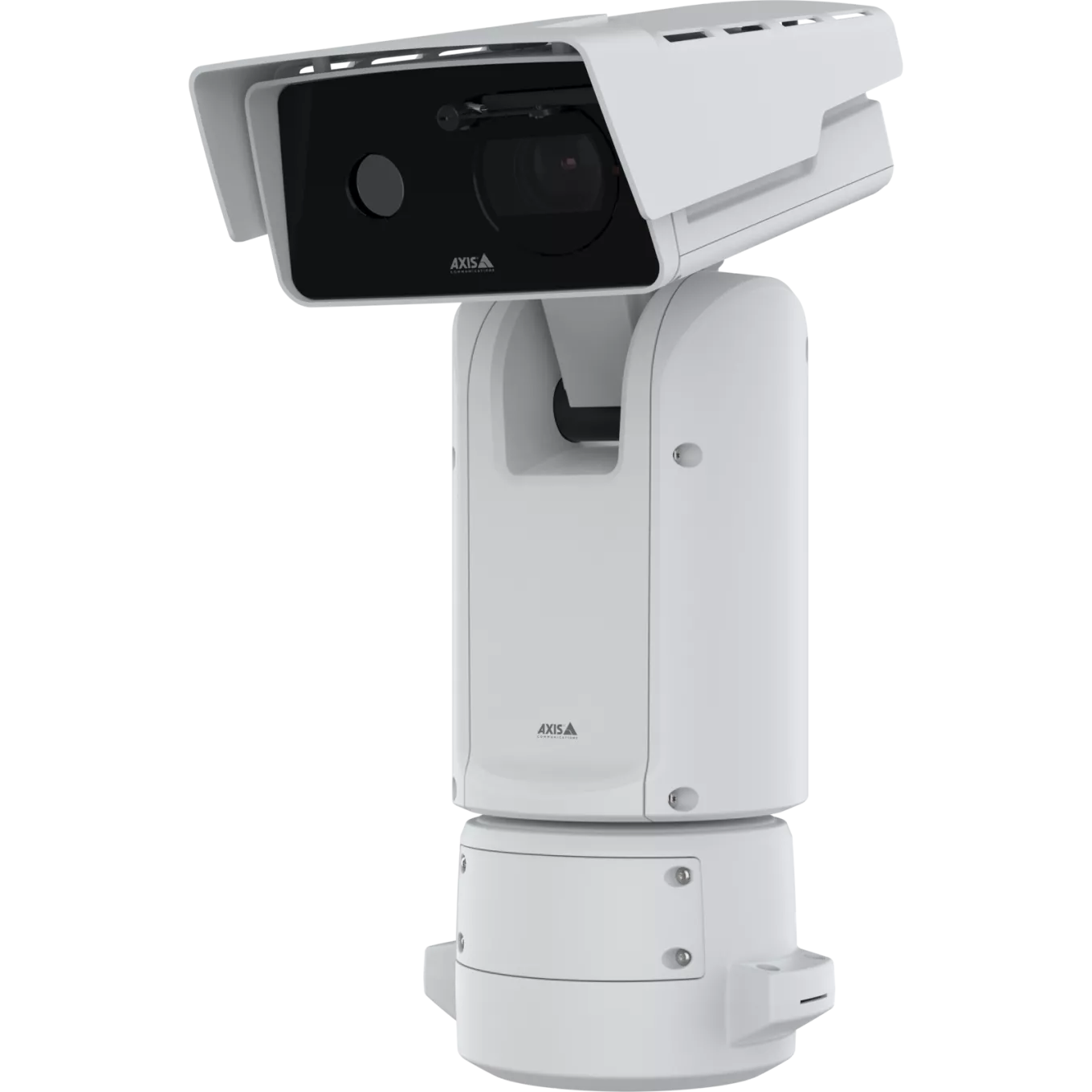

The AXIS Q8752-E Mk II Bispectral PTZ Camera is engineered for environments requiring reliable, around-the-clock surveillance. Its dual imaging system integrates a thermal camera for detection in all lighting and weather conditions, and a visual camera for detailed identification. The camera’s PTZ functionality allows for rapid repositioning and smooth tracking of objects, making it ideal for dynamic monitoring scenarios.
Key Features:
-
Dual Imaging System: Thermal and visual cameras provide comprehensive monitoring capabilities.
-
PTZ Functionality: 360° endless pan and -90° to +45° tilt range for extensive coverage.
-
Advanced Imaging Technologies: Lightfinder 2.0 and Forensic WDR ensure high-quality images in low-light and high-contrast situations.
-
Robust Construction: Certified with IP66, NEMA TS2, and IK10 ratings for resistance to harsh weather and vandalism.
-
Enhanced Cybersecurity: Features signed firmware, secure boot, and a TPM 2.0 module for system integrity.
Use Cases:
-
Perimeter Security: Ideal for monitoring the boundaries of critical infrastructure facilities.
-
Border Control: Effective in surveilling expansive and remote border areas.
-
Airport Surveillance: Suitable for monitoring runways and restricted zones.
-
Maritime Monitoring: Capable of detecting vessels and activities in coastal regions.
-
Urban Surveillance: Useful for overseeing public spaces and transportation hubs.
Model Variants and Differences
The AXIS Q8752-E Mk II is available in four variants, differentiated by thermal lens type and frame rate:
Part Number | Thermal Lens Type | Frame Rate | Description |
---|---|---|---|
03050-001 | Zoom (35–105 mm) | 8.3 fps | Suitable for applications with export restrictions requiring lower frame rates. |
03051-001 | Zoom (35–105 mm) | 30 fps | Offers higher frame rates for smoother video, ideal for dynamic environments. |
03052-001 | Fixed 35 mm | 8.3 fps | Fixed lens with lower frame rate, compliant with certain export regulations. (this one is around 10k cheaper) |
03053-001 | Fixed 35 mm | 30 fps | Fixed lens with higher frame rate for detailed imaging. |
Key Differences:
-
Thermal Lens Type:
-
Zoom (35–105 mm): Provides variable focal lengths, allowing for adjustable fields of view and zoom capabilities.
-
Fixed 35 mm: Offers a constant focal length, suitable for consistent monitoring of specific areas.
-
-
Frame Rate:
-
8.3 fps: Lower frame rate, often used to comply with export control regulations.
-
30 fps: Higher frame rate, delivering smoother video, beneficial for capturing fast-moving subjects.
-
