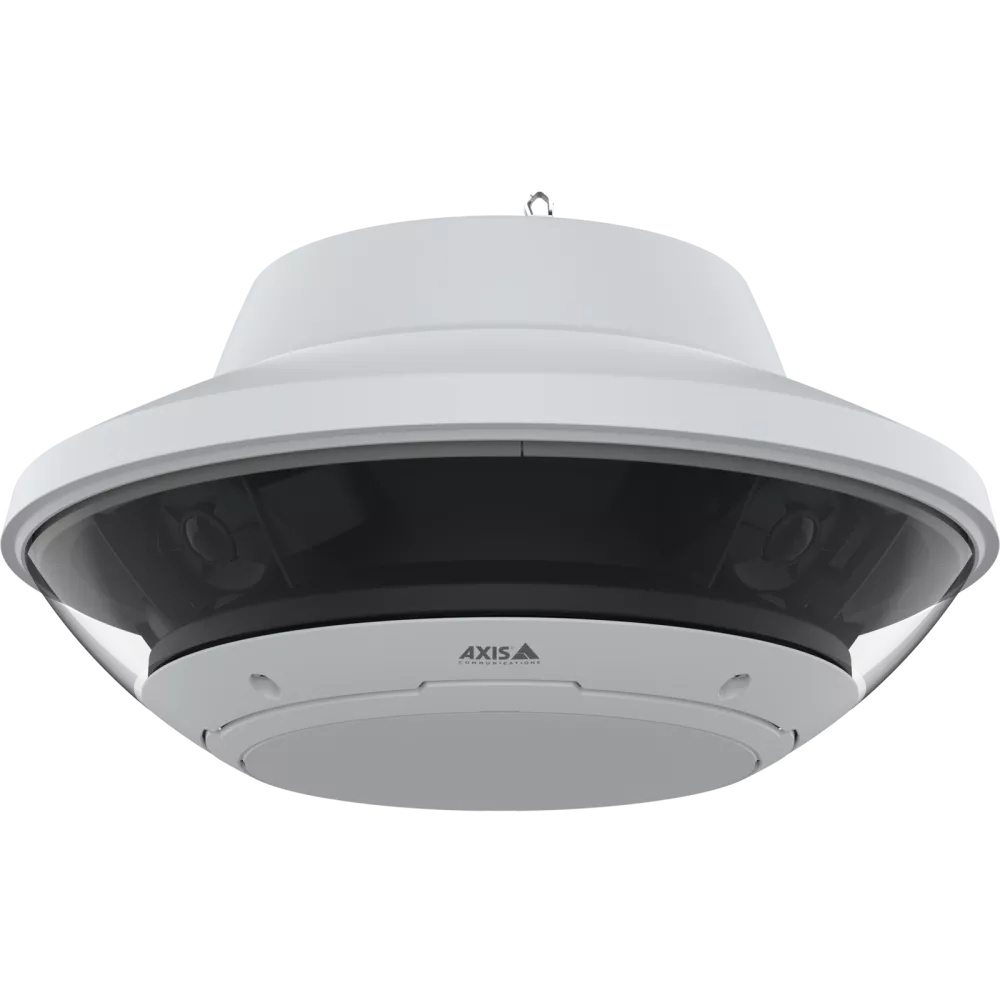

AXIS Q6020-E 360° Outdoor Panoramic Multi-Sensor Camera with DLPU & AI Analytics

The AXIS Q6020-E Panoramic Network Camera is a high-performance outdoor security solution that delivers total situational awareness. With four 5 MP image sensors, it produces a seamless 20 MP panoramic view that covers a full 360° horizontal field of view and 84° vertical field of view—eliminating blind spots and reducing the need for multiple cameras.

Powered by the dual ARTPEC-8 SoC platform and an integrated Deep Learning Processing Unit (DLPU), the Q6020-E provides advanced on-board analytics such as AXIS Object Analytics. This enables precise detection, classification, and tracking of humans and vehicles, as well as metadata generation for efficient forensic searches.

This camera is designed for fast and simple installation, featuring autofocus, auto-alignment, and support for a Wi-Fi dongle to enable wireless setup views on-site. With Lightfinder 2.0 and Forensic WDR, the Q6020-E delivers accurate color images in near darkness and clear detail in high-contrast environments, performing down to 0.06 lux in color and 0.03 lux in black and white.

The camera supports H.264, H.265, Zipstream, and Motion JPEG, ensuring efficient bandwidth and storage usage without compromising image quality. It also includes local microSD card storage as well as network-based storage options.

Cybersecurity is built in at every level, with Axis Edge Vault, secure boot, signed firmware, and privacy masking to protect both video integrity and user data. Designed for extreme outdoor use, the Q6020-E carries IP66, NEMA 4X, and IK10 ratings, and operates reliably in temperatures from −50 °C to +55 °C.

---

Use Cases

• City Surveillance & Public Safety
  Monitor large city squares, intersections, and transport hubs with complete coverage and AI-driven detection of vehicles and pedestrians.

• Perimeter & Critical Infrastructure
  Secure airports, ports, power plants, and industrial facilities with a single panoramic camera capable of covering wide expanses.

• Large Campuses & Facilities
  Universities, stadiums, and corporate campuses benefit from wide-area monitoring with the ability to integrate with PTZ cameras for close-up details.

• Traffic & Parking Management
  Observe vehicle flow, detect congestion, and track incidents across roads, parking lots, and logistics centers.

• Event & Crowd Monitoring
  Perfect for concerts, festivals, and public gatherings where panoramic coverage and intelligent analytics are critical for real-time monitoring.

---
