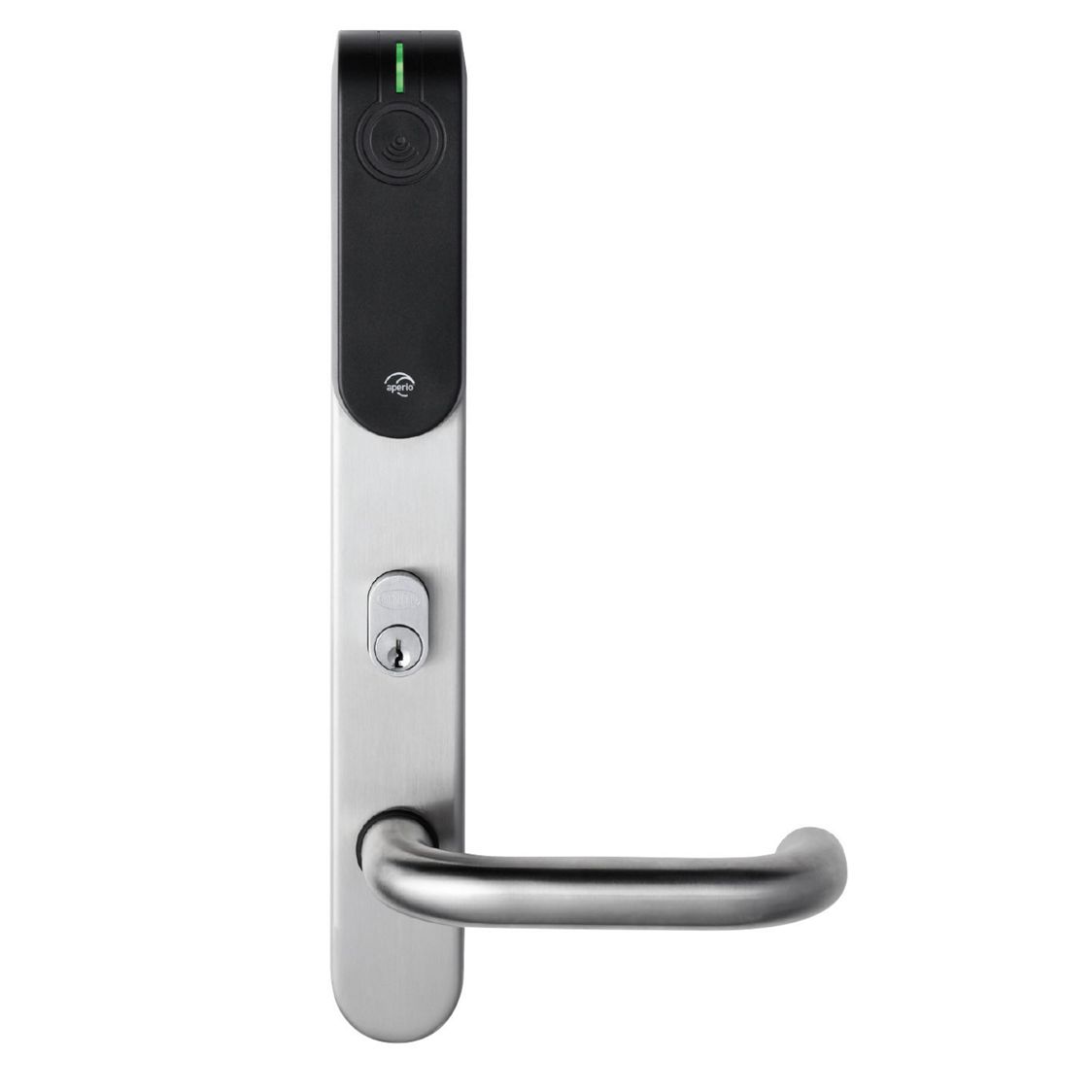

Aperio E100 V3 Escutcheon Smart Lock BLE Multi-Class 35-45mm Door with 3772 Lock No Hub

Product SKU: E103MUB1SS1/3772

Product Overview

The Aperio E100 V3 Escutcheon Smart Lock BLE Multi-Class 35-45mm Door with 3772 Lock is a wireless electronic escutcheon designed to upgrade mechanical doors into intelligent access-controlled entry points. Built for integration with the Lockwood 3772 mortice lock, the E100 V3 provides secure card, mobile and credential-based access without requiring door wiring. Using Aperio wireless communication technology and Bluetooth Low Energy connectivity, the lock communicates with the access control system while maintaining simple installation and modern electronic security functionality.

Why Choose the Aperio E100 V3 Escutcheon

The Aperio E100 V3 provides an efficient way to convert existing mechanical doors into electronic access control points without installing cabling through the door. By fitting directly onto compatible Lockwood mortice locks, the escutcheon allows facilities to modernise access control quickly and cost-effectively. Wireless communication enables real-time credential updates and remote door management through the building’s access control system. With support for multiple RFID technologies, mobile access and secure encryption, the E100 V3 delivers advanced access control capability while maintaining simple installation and reliable everyday operation.

Key Capabilities

Key Features

• Bluetooth Low Energy Connectivity: Wireless communication enables integration with access control systems and mobile credential support without requiring wired connections at the door.

• MultiCLASS RFID Compatibility: Supports a wide range of credential technologies including common RFID card formats and secure mobile credentials.

• Key Override Cylinder: Includes mechanical key override compatibility using Australian oval cylinders for emergency or administrative access.

• Emergency Egress Design: The internal lever remains free for safe exit at all times, ensuring compliance with emergency egress requirements.

• Real-Time Access Updates: Authorisation changes can be applied through the access control system and communicated to the lock wirelessly.

• Local Event Storage: The lock can store audit events locally and synchronise them with the access control system for reporting and monitoring.

Specifications Summary

• Product Type: Wireless escutcheon smart lock
• Compatible Lock: Lockwood 3772 mortice lock
• Door Thickness: 35–45mm
• Communication: Aperio wireless communication with Bluetooth Low Energy
• RFID Technologies: Supports multiple RFID credential formats and mobile access
• Wireless Range: Approximately 5–25 metres depending on installation environment
• Encryption: AES 128-bit security
• Battery Type: Lithium CR123A
• Battery Life: Typically up to 40,000 operations
• Operating Temperature: 0°C to 60°C
• Housing Finish: Brushed stainless steel
• Ingress Rating: IP30
• Override Cylinder: Lockwood Australian oval cylinder compatible

Ideal Use Cases

• Office Buildings – Wireless access control for internal offices and meeting rooms.
• Education Facilities – Controlled access for classrooms, staff areas and administrative offices.
• Healthcare Environments – Secure access to restricted areas while maintaining emergency egress.
• Commercial Buildings – Cost-effective upgrade from mechanical locks to electronic access control.

FAQs

1. What is the Aperio E100 V3 escutcheon used for?
   The E100 V3 escutcheon converts a compatible mechanical mortice lock into an electronic access control door. It allows authorised users to unlock the door using RFID cards or mobile credentials while maintaining mechanical security through the mortice lock.
2. Does the lock require wiring through the door?
   No. The escutcheon is battery powered and communicates wirelessly with the access control system using Aperio technology. This allows installers to add electronic access control without running cables through the door.
3. What happens during a power or battery failure?
   The lock continues operating on its internal battery supply. If the battery becomes low, the system provides warnings so it can be replaced. The lock also includes a mechanical key override for emergency access if required.
