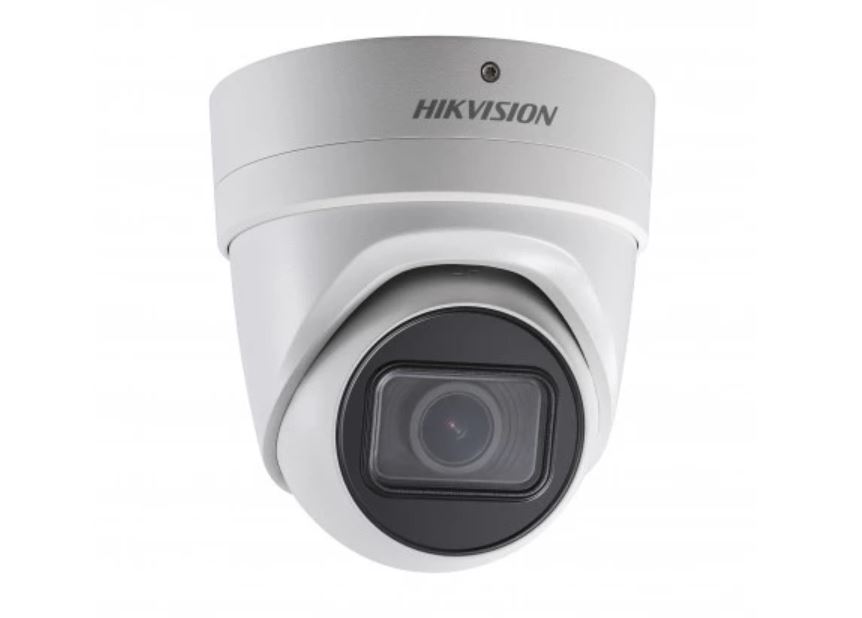

Hikvision DS-2CD2H85FWD-IZS 8MP Outdoor Motorised VF Turret CCTV Camera IR 2.8-12mm


Part of Hikvision’s Easy IP 3.0 range of cameras, the HIK-2CD2H85FWD-IZS or DS-2CD2H85FWD-IZSis an outdoor motorised varifocal IR turret camera that produces an exceptional 8MP high-resolution video. Powered by the latest innovation in image sensor technology and an ultra high definition image processing chipset from Amberella it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR), Audio/Alarm IO and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. With a 2.8-12mm motorised varifocal lens, this camera offers great flexibility. Rigorously tested, Hikvision’s generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.



















$464.00 $533.82 inc GST +3 Year Warranty & Support

Part of Hikvision’s Easy IP 3.0 range of cameras, the HIK-2CD2H85FWD-IZS or DS-2CD2H85FWD-IZS is an outdoor motorised varifocal IR turret camera that produces an exceptional 8MP high-resolution video. Powered by the latest innovation in image sensor technology and an ultra high definition image processing chipset from Amberella it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR), Audio/Alarm IO and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. With a 2.8-12mm motorised varifocal lens, this camera offers great flexibility. Rigorously tested, Hikvision’s generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

FEATURES

  • 1/2.5″ progressive scan CMOS
  • 8MP resolution (3840 x 2160) at 20fps
  • 2.8 to 12 mm motorised lens (HVOF – 115degrees to 35degrees)
  • H.265, H.265+, H.264+, H.264
  • Third stream
  • 120dB wide dynamic range (WDR)
  • Backlight compensation, 3D digital noise reduction
  • Up to 30m infrared
  • Audio/alarm IO
  • IP67, IK10
  • Line crossing, intrusion, object abandoned, object removed and face detection
  • Supports on-board storage, up to 128 GB
  • 802.3af PoE or 12VDC

Sample 8MP Hikvision Videos

NOTE If you’d like to experience full 8MP, you may have to click the gear icon and change the resolution to 4K, otherwise youtube may stream at a lower quality resolution.




Like this camera? Easily add to cart with your preferred mount or bracket below:

ImageNamePriceBuy
Hikvision Wall Mount Bracket DS-1473ZJ-155 to suit HIK-2CD27x5 Series Cameras$37.00 $52.00 inc GST +3 Year Warranty & Support

Colour

Hikvision DS-1475ZJ-SUS Vertical Pole Mount Bracket to suit 26x5, 27x5 and 2Hx5 Series Cameras$42.00 $44.00 inc GST +3 Year Warranty & Support
Hikvision DS-1473ZJ-135B Wall Mount Bracket with Junction Box$40.24 $52.00 inc GST +3 Year Warranty & Support
Hikvision DS-1476ZJ-SUS CCTV Camera Bracket$38.00 $46.00 inc GST +3 Year Warranty & Support
Hikvision DS-1471ZJ-135 Pendant Mount Bracket$52.00 inc GST +3 Year Warranty & Support
Camera
Image Sensor: | 1/2.5″ Progressive Scan CMOS
Signal System: | PAL/NTSC
Min. Illumination: | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter time: | 1/3 s to 1/100,000 s
Slow shutter: | Support
Lens: | 2.8 to 12 mm
Lens Mount: | φ14
Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°
Day& Night: | IR cut filter with auto switch
Wide Dynamic Range: | 120 dB
Digital noise reduction: | 3D DNR
Focus: | Motorized VF lens(-Z model)
Compression Standard
Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: | 32Kbps~16Mbps
Audio Compression: | G.711/G.722.1/G.726/MP2L2
Audio bit rate: | 32 to 128kbps
Triple Streams: | Yes
Max. Image Resolution: | 3840 × 2160
Frame Rate: | 50Hz: 20 fps (3840 × 2160), 25 fps (2944 × 1656, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30 fps (2944 × 1656, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream: | 50Hz: 25fps (640 × 360, 352 × 288)
60Hz: 30fps (640 × 360, 352 × 240)
Third Stream: | 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement: | BLC/3D DNR
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping: | Support
ROI: | Support 1 fixed region for each stream
Day/Night Switch: | Auto/Schedule/Triggered by Alarm In
Network
Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: | Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: | One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video
mask, Watermark, IP address filtering
System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface
Alarm: | 1 input, 1 output (max. 12 VDC, 30 mA)
Alarm Input: | 1
Alarm Output: | 1
Video Output: | 1Vp-p Composite Output (75 Ω, BNC)
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: | Yes
Audio
Environment Noise Filtering: | Support
Smart Feature-set
Behavior Analysis: | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: | Cross a pre-defined virtual line
Intrusion Detection: | Enter and loiter in a pre-defined virtual region
Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display.
Recognition: | Face Detection
General
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: | 12 VDC, 0.92A, max. 11W
PoE (802.3af, 37V to 57V), 0.22A to 0.35A, max. 12.5W
Impact Protection: | IK10
Weather Proof: | IP67
IR Range: | Up to 30m
Dimensions: | Φ 135.8 mm × 145.5 mm (Φ 5.35″ × 5.73″)
Weight: | With Package: Approx. 1220 g (2.69 lb.)
Camera: Approx. 1060 g (2.34 lb.)
