-20%
, , ,

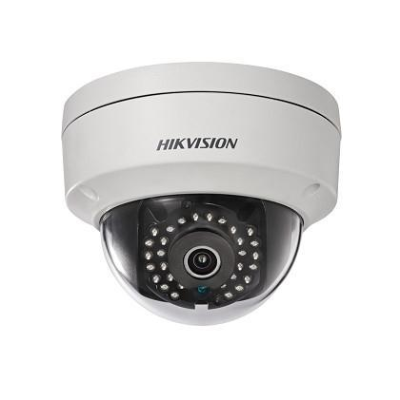

Hikvision DS-2CD2142FWD 4MP Outdoor Dome, H.264+, 30m IR, 3DDNR, 120dB WDR, IP67, IK10, PoE, 2.8mm

Availability:

Out of stock


Part of Hikvision’s 2-Line range of cameras, the HIK-2CD2142FWDI2 is a vandal proof outdoor IR network dome camera that produces exceptional 4MP high resolution video. Providing an ideal combination of features and affordability, this camera includes 120dB true wide dynamic range and supports H.264+ intelligent compression which allows output of an incredibly well balanced image and reduces bandwidth/storage requirements by up to 50%. With inbuilt IR providing up to 30m visibility at night and a 4mm fixed lens, this camera is great for covering a wide area so you can focus on the detail you really want.

Rigorously tested, Hikvision’s 2-Line generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

NOTE – THIS CAMERA IS NO LONGER BEING PRODUCED.

IT HAS BEEN REPLACED BY:

Hikvision DS-2CD2165G0-I 6MP Outdoor Dome CCTV Camera, H.265+, 30m IR with Darkfighter





$215.20 $269.00 inc GST +3 Year Warranty & Support

Out of stock

Download Specification Sheet for HIK-2CD2142FWDI2
Download User Manual for HIK-2CD2142FWDI2

Part of Hikvision’s 2-Line range of cameras, the HIK-2CD2142FWDI2 is a vandal proof outdoor IR network dome camera that produces exceptional 4MP high resolution video. Providing an ideal combination of features and affordability, this camera includes 120dB true wide dynamic range and supports H.264+ intelligent compression which allows output of an incredibly well balanced image and reduces bandwidth/storage requirements by up to 50%. With inbuilt IR providing up to 30m visibility at night and a 2.8mm fixed lens, this camera is great for covering a wide area so you can focus on the detail you really want.

Rigorously tested, Hikvision’s 2-Line generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

Image Sensor: 1/3″ Progressive Scan CMOS
Min. Illumination: 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Lens: 2.8mm, 4mm, 6mm @ F2.0 angle of view: 106°(2.8mm), 83°(4mm), 55.4°(6mm)
Lens Mount: M12
Adjustment Range: Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Compression Standard
Video Compression: H.264/MJPEG/H.264+
H.264 code profile: Main Profile
Video bit rate: 32Kbps~16Mbps
Dual Stream: Yes
Max. Image Resolution: 2688 × 1520
Frame Rate: 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
Sub Stream: 50Hz: 25fps(352×288),25fps(640×360)
60Hz: 30fps(352×240),30fps(640×360)
Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC: Yes, zone configurable
ROI: Support
Network
Network Storage: NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger: Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G),ISAPI
Interface
Audio: 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model)
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
Alarm: 1x alarm I/O *only for –S models
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Wi-Fi Specification (-W)
Wireless Standards: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: 20/40MHz Support
Modulation Mode: 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate: 11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps
Wireless Range: 50m(depend on environment)
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: Max. 5W
Impact Protection: IK10
Weather Proof: IP67
IR Range: Up to 30m
Dimensions: Φ111 × 82 (4.4” × 3.2”)
Weight: 500g (1.1lbs)
