Product Overview
For homeowners, small business operators, and light commercial installers wanting a complete IP camera system without sourcing components separately, this Dahua 4-camera 6MP WizSense turret kit in black delivers a pre-matched, ready-to-install solution. Each DH-IPC-HDW3666EMP-S-AUS camera captures 3072 x 1728 footage with Starlight low-light technology and a 30m infrared range, maintaining usable image detail after dark without additional lighting. Featuring SMD 4.0 AI on every camera, the kit classifies humans and vehicles accurately, filtering out animals and environmental motion to reduce notification fatigue. Perimeter Protection adds tripwire and intrusion zone detection with push alerts to a connected smartphone. The included 4-channel WizSense NVR powers all cameras via built-in PoE ports, so only a single Cat6 cable per camera is required between the recorder and each mounting position. The black finish suits modern facades, dark soffits, and commercial exteriors where a white camera would draw attention.


Key Capabilities
6MP Starlight Resolution
Each camera records at 3072 x 1728 with Starlight sensor technology that maintains colour and contrast in low ambient light. At eave, soffit, or wall positions, this resolution supports identification of faces, clothing, and vehicle detail across residential and small commercial sites.
SMD 4.0 Human and Vehicle Classification
SMD 4.0 uses deep learning to separate human and vehicle targets from animals, foliage, and passing headlights. Notifications are triggered only when a person or vehicle is confirmed, which makes it practical for properties near roads, trees, or open paddocks where generic motion detection creates constant false alerts.
30m Infrared Night Vision
Built-in IR LEDs extend night coverage to 30 metres per camera. This supports monitoring of long driveways, side access paths, rear yards, and car park entries where useful detail needs to be captured well beyond the immediate camera position after dark.
Single-Cable PoE Installation
The DHI-NVR4104HS-P-AI/ANZ includes 4 built-in PoE ports delivering both power and data to each camera through one Cat6 run. No separate power adapters or additional switches are required, which simplifies cable planning and reduces installation time significantly on a standard 4-camera layout.
Perimeter Protection with Push Alerts
Tripwire and intrusion detection zones are configured through the NVR interface, allowing you to define virtual boundaries around gates, building perimeters, or storage areas. When a classified human or vehicle crosses a defined zone, the system sends an immediate push notification to the DMSS mobile app.
Built-in Microphone and H.265+ Compression
Each DH-IPC-HDW3666EMP-S-AUS camera includes an integrated microphone, recording ambient audio alongside video without additional hardware. H.265+ compression reduces file sizes compared to older codecs, extending the usable recording period on a given hard drive capacity across all 4 channels.
Best For
- Residential Properties: Homeowners wanting 6MP coverage of driveways, entry points, backyards, and garages with SMD 4.0 reducing unwanted notifications from animals and passing traffic.
- Small Retail and Commercial Sites: Shopfronts, small warehouses, and office car parks where vehicle and human detection accuracy matters for after-hours monitoring and incident review.
- Rental and Investment Properties: Landlords who need a self-contained system that can be installed with minimal cabling complexity and monitored remotely via the DMSS mobile app.
- Construction and Equipment Sites: Outdoor deployment in exposed conditions is supported by the IP67 weatherproof rating, with 30m IR providing practical perimeter coverage of site access points and storage areas at night.
- First-Time IP System Buyers: The matched kit format removes component compatibility guesswork, and the PoE NVR means setup requires only network cable runs from a central recorder location rather than power and data separately.
Why Choose the Dahua 4-Camera 6MP WizSense Turret Kit
Entry-level camera kits frequently cut corners on sensor quality, detection intelligence, or NVR compatibility, leading to blurry night footage, constant nuisance alerts, and AI features that are advertised but never actually function. This Dahua WizSense 6MP turret kit is built around genuine component matching: the DHI-NVR4104HS-P-AI/ANZ is designed specifically for WizSense cameras, which means SMD 4.0 classification, Perimeter Protection, and remote push alerts all operate as intended without additional configuration workarounds. The 6MP sensor captures detail that 4MP systems cannot match at the same distance, and the Starlight technology sustains that quality into low-light conditions. The black finish suits contemporary architecture and modern commercial facades where a white camera would contrast noticeably. Available through Security Wholesalers, this kit is stocked as a complete matched system for buyers who want AI-capable surveillance without assembling individual components or accepting a compromise on detection quality.

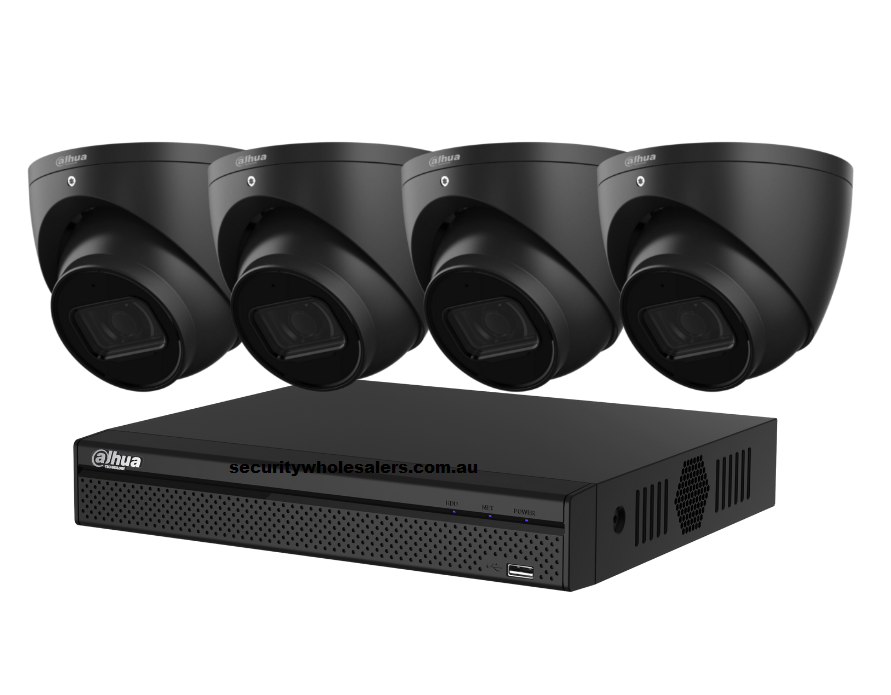

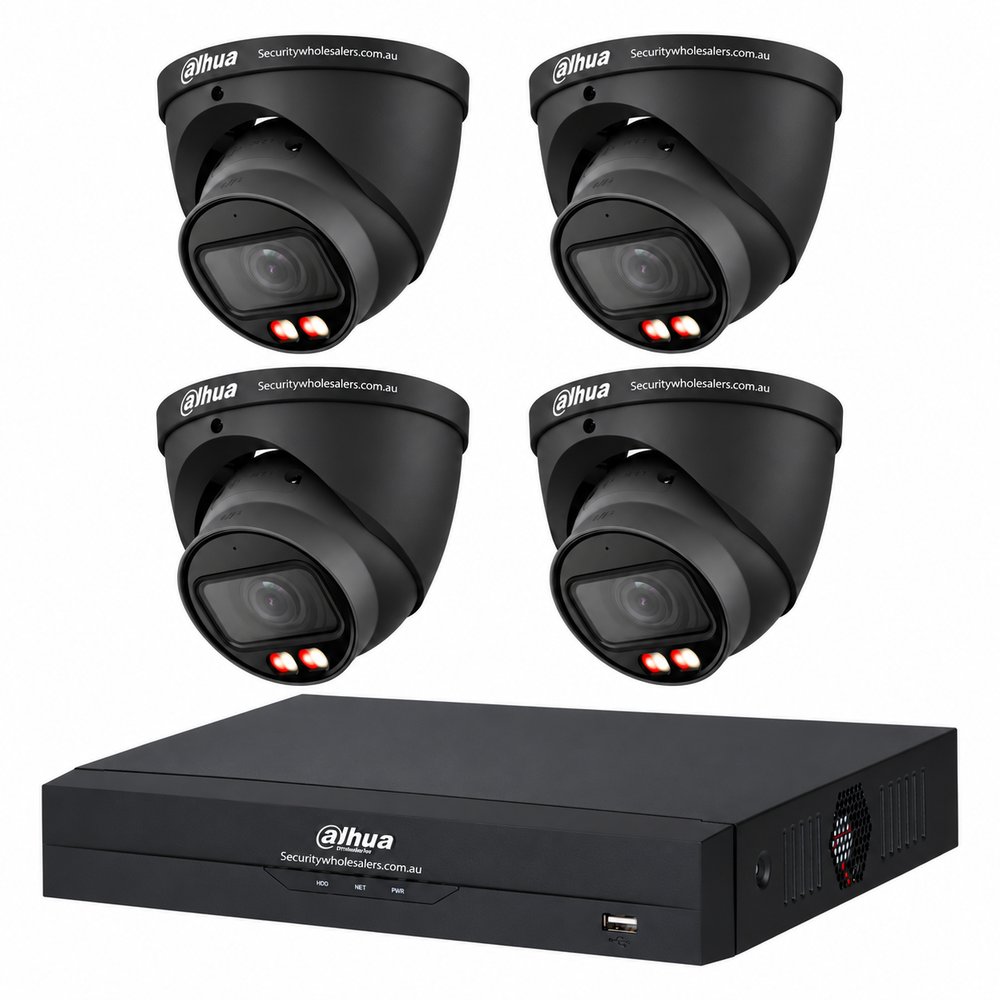

Package Inclusions
- 4 x DH-IPC-HDW3666EMP-S-AUS – 6MP SMD 4.0 WizSense Turret Network Camera, BLACK, 2.8mm, 30m IR
- 1 x DHI-NVR4104HS-P-AI/ANZ – 4-Channel PoE WizSense Network Video Recorder, 4K, SMD 4.0
- No HDD included – hard drive available separately and will be pre-installed if purchased with the kit
Buyer Decision Tips
Buyer Tip: This kit ships without a hard drive. Running 4 cameras at 6MP continuously requires significant storage: a 2TB surveillance-grade HDD covers roughly 7 to 10 days of continuous recording depending on motion frequency and compression settings, while 4TB extends that to 2 to 3 weeks. Surveillance-rated drives such as WD Purple or Seagate Skyhawk are designed for the constant write cycles that standard desktop HDDs cannot sustain reliably. Add a compatible drive to your order and it will be pre-installed in the NVR before dispatch.
Buyer Tip: Plan your cable routes from the NVR location to each camera position before installation. Each PoE run must stay within 100 metres to guarantee reliable power delivery and data throughput. Run bulk Cat6 cable through walls, ceilings, or conduit before mounting cameras, and terminate with RJ45 connectors at each end. Pre-made Cat6 patch leads in various lengths are available separately for shorter or direct runs where pulling bulk cable is not practical.
Key Features & Technical Specifications
| Camera Model | DH-IPC-HDW3666EMP-S-AUS (Black) |
| NVR Model | DHI-NVR4104HS-P-AI/ANZ |
| Resolution | 6MP – 3072 x 1728 @ 20fps; also supports 4MP (2688 x 1520) @ 30fps |
| Image Sensor | 1/2.7″ progressive scan CMOS |
| IR Night Vision Range | Up to 30 metres |
| AI / Smart Detection | SMD 4.0 – human and vehicle classification with animal and environmental false alarm filtering |
| Intelligent Detection | Tripwire, intrusion detection (Perimeter Protection) |
| Abnormality Detection | Motion detection, video tampering, defocus detection, scene changing, audio detection, SD card alerts, network disconnection, IP conflict, illegal access, voltage detection |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Power Supply | 12V DC / PoE (IEEE 802.3af) |
| Built-in Microphone | Yes |
| Local Storage | Supports up to 256GB Micro SD card (per camera) |
| Weather Protection | IP67 weatherproof rated |
| Wide Dynamic Range | WDR, 3D DNR, HLC, BLC supported |
| NVR Channels | 4 channels with 4 built-in PoE ports |
| NVR Max Output Resolution | 4K supported |
| Cameras Included | 4 x DH-IPC-HDW3666EMP-S-AUS (Black) |
| Hard Drive | Not included – available separately; pre-installed if ordered with kit |
Ideal Use Cases
Home Driveway and Entry Monitoring
The 30m IR range and 6MP resolution allow homeowners to capture identifiable detail of visitors, delivery personnel, or intruders approaching the property. The turret housing suits eave and soffit mounting at typical residential entry points.
Small Business After-Hours Security
Retail shopfronts, workshops, and small warehouses benefit from Perimeter Protection tripwire alerts and SMD 4.0 human-specific detection. Notifications fire only for confirmed human or vehicle targets, not passing traffic, insects, or environmental movement.
Car Park and Vehicle Monitoring
SMD 4.0 vehicle classification combined with 6MP image detail supports recording of vehicle movement and capture of usable number plate detail at car park entries and exits in both day and night conditions.
Rental Property Surveillance
The self-contained PoE kit requires minimal ongoing maintenance once installed. Remote viewing and alert management via the DMSS mobile app means landlords can monitor multiple properties from anywhere without requiring physical access to the NVR.
Construction and Equipment Storage Sites
IP67 weatherproofing enables camera deployment in exposed outdoor environments. The 30m IR range covers machinery storage areas, site access gates, and material yards after dark, with push alerts triggered when a person or vehicle enters a defined zone.
Schools and Community Facilities
4 cameras cover building entrances, car parks, and outdoor areas at community sites where budget is a constraint but detection accuracy and image quality cannot be sacrificed. The WizSense NVR enables centralised management across all positions from a single interface.
Choosing the Right Model
- Choose this model if: You need a complete 4-camera PoE IP system in black with 6MP resolution, 30m IR night vision, SMD 4.0 AI detection, built-in microphones, and Perimeter Protection – all in a single matched kit that connects and operates without additional component sourcing.
- Choose a different model if: You need more than 4 camera positions, require full-colour night vision rather than infrared, prefer a white finish for lighter-coloured building exteriors, or need a larger NVR with expandable channel capacity for future growth.
FAQs
- Does this kit include a hard drive?
No. This kit is supplied without a hard drive. A compatible surveillance-grade HDD – such as WD Purple or Seagate Skyhawk – should be added separately. Available capacities start at 2TB and go up to 8TB. If a drive is added to the same order, it will be pre-installed in the NVR before dispatch so the system arrives configured and ready to record. - What does SMD 4.0 do differently from standard motion detection?
Standard motion detection triggers on any pixel change in the frame, including animals, swaying trees, rain, and car headlights sweeping across a wall. SMD 4.0 uses deep learning to analyse the shape and movement pattern of detected objects and classifies them specifically as humans or vehicles. Only confirmed targets generate a notification, which substantially reduces the volume of false alerts on outdoor camera positions. - How do I view the cameras remotely on my phone?
The DHI-NVR4104HS-P-AI/ANZ supports remote access via the DMSS mobile application, available on both iOS and Android. Once the NVR is connected to your local network and internet, you can view live footage from all 4 channels, review recorded footage, and receive push notification alerts directly to your phone when a detection event is logged. - Do I need a separate PoE switch or power adapters for the cameras?
No. The NVR included in this kit has 4 built-in PoE ports, each delivering power and data to one camera through a single Cat6 cable. No external PoE switch, power injector, or individual camera power adapter is required for a standard 4-camera installation. - Why does this kit come in black rather than white, and does the colour affect performance?
The black finish is a cosmetic variant of the same DH-IPC-HDW3666EMP-S-AUS camera and does not affect optical performance, IR range, weather protection, or detection capability. The black colour suits dark soffits, modern building facades, and commercial exteriors where a white camera would contrast noticeably against the surface it is mounted to. - Can I expand this system to more than 4 cameras in the future?
The DHI-NVR4104HS-P-AI/ANZ supports a maximum of 4 cameras and cannot be expanded. If you expect to add more cameras after initial installation, a larger NVR with 8 or more channels should be considered from the outset to avoid replacing the recorder when additional positions are needed. - Can the cameras record to a local SD card independently of the NVR?
Yes. Each DH-IPC-HDW3666EMP-S-AUS camera supports a Micro SD card up to 256GB. This allows edge recording directly on the camera as a secondary backup, or as a standalone option in situations where the NVR is temporarily offline or cannot be reached over the network. - Where can I get accessories and support for this kit?
Security Wholesalers stocks compatible accessories including surveillance hard drives, junction boxes, wall mount brackets, and Cat6 cabling to complement this kit. Technical support for setup, configuration, and DMSS remote access is also available after purchase.
Cabling Considerations
- Cable Type: Cat6 network cable with RJ45 connectors is recommended for all camera-to-NVR runs. Cat5e is also compatible but Cat6 provides better performance, lower signal loss, and greater long-term reliability for PoE delivery.
- Maximum Cable Run: Each PoE camera run must not exceed 100 metres from the NVR PoE port to the camera to ensure reliable power delivery and consistent data throughput.
- PoE Considerations: All 4 cameras are powered through the NVR’s built-in PoE ports (IEEE 802.3af). No external power injectors are required. Keep all runs within the 100m PoE limit per camera channel.
- Wiring Tips: Plan all cable routes before mounting cameras. Avoid running network cable parallel to mains power cables to reduce interference risk. Pre-made Cat6 patch leads are suitable for shorter or more direct runs; bulk cable terminated with field-fit RJ45 connectors works better for longer concealed routes through walls or ceilings.
