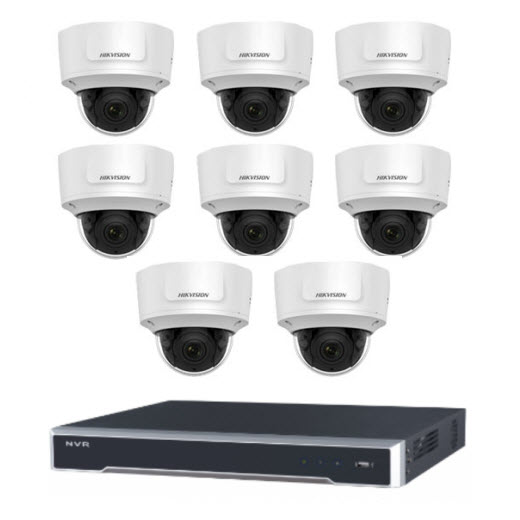

8MP 8CH Hikvision CCTV Kit: 8 x Outdoor Motorised VF Domes + 8CH NVR


8 x  8 MP Hikvision Outdoor Motorised VF Domes

Code/SKU: HIK-2CD2785FWD-IZS or DS-2CD2785FWD-IZS

Quick Specs: H.265+, 30m IR, IO, WDR, IP67

Lens Options: 2.8mm – 12mm       IR Range: 30m



1 x 8 CH Hikvision PoE NVR

Code/ SKU: DS-7608NI-I2-8P

Quick Specs: 80Mbps, 8 PnP ports, 4K, VGA/HDMI, 1 RU, 2 HDD Bay + 3TB



Upgrades available:

+ $200 Upgrade to 16 CH NVR

+ $450 per additional camera

$4,548.18 $5,078.23 inc GST +3 Year Warranty & Support

Optional Upgrades

Colour

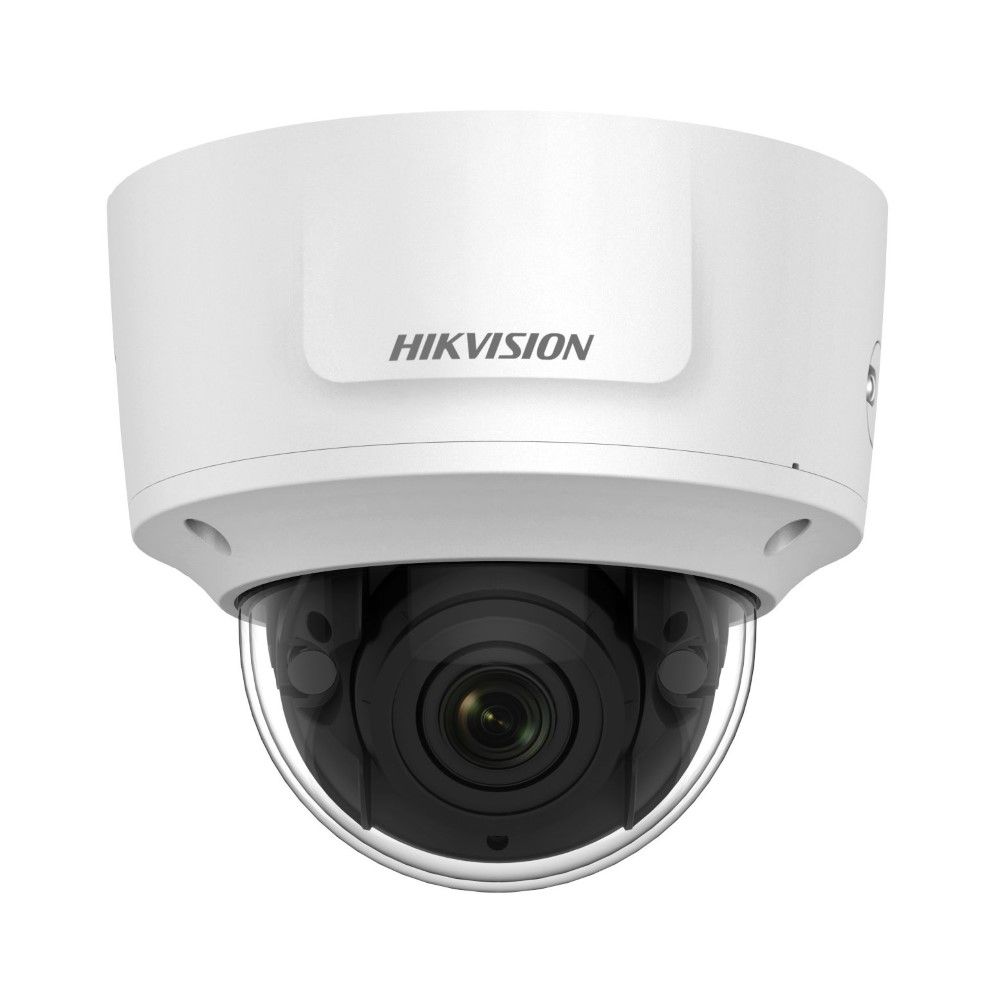

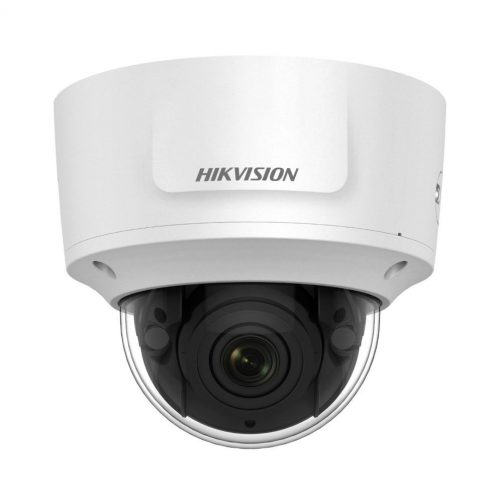

Part of Hikvision’s Easy IP 3.0 range of cameras, the HIK-2CD2785FWD-IZS or DS-2CD2785FWD-IZS is a vandal proof, outdoor and motorised varifocal IR dome camera that produces an exceptional 8MP high-resolution video. Powered by the latest innovation in image sensor technology and an ultra high definition image processing chipset from Amberella it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR), Audio/Alarm IO and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. With a 2.8-12mm motorised varifocal lens, this camera offers great flexibility. Rigorously tested, Hikvision’s generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

Features

  • 1/2.5″ progressive scan CMOS
  • 8MP resolution (3840 x 2160) at 20fps
  • 2.8 to 12 mm motorised lens (HVOF – 115 degrees to 35 degrees)
  • H.265, H.265+, H.264+, H.264
  • Third stream
  • 120dB wide dynamic range (WDR)
  • Backlight compensation, 3D digital noise reduction
  • Up to 30m infrared
  • Audio/alarm IO
  • IP67, IK10
  • Line crossing, intrusion, object abandoned, object removed and face detection
  • Supports on-board storage, up to 128 GB
  • 802.3af PoE or 12VDC
Camera
Image Sensor: | 1/2.5″ Progressive Scan CMOS
Signal System: | PAL/NTSC
Min. Illumination: | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter time: | 1/3 s to 1/100,000 s
Slow shutter: | Support
Lens: | 2.8-12 mm
Lens Mount: | φ14
Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night: | IR cut filter with auto switch
Wide Dynamic Range: | 120 dB
Digital noise reduction: | 3D DNR
Focus: | Motorized VF lens(-Z model)
Compression Standard
Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: | 32Kbps~16Mbps
Audio Compression: | G.711/G.722.1/G.726/MP2L2
Audio bit rate: | 32 to 128kbps
Triple Streams: | Yes
Max. Image Resolution: | 3840 × 2160
Frame Rate: | 50Hz: 20 fps (3840 × 2160), 25 fps (2944 × 1656, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30 fps (2944 × 1656, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream: | 50Hz: 25fps (640 × 360, 352 × 288)
60Hz: 30fps (640 × 360, 352 × 240)
Third Stream: | 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement: | BLC/3D DNR
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping: | Support
ROI: | Support 1 fixed region for each stream
Day/Night Switch: | Auto/Schedule/Triggered by Alarm In
Network
Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: | Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: | One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video mask, Watermark, IP address filtering
System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface
Alarm: | 1 input, 1 output (max. 12 VDC, 30 mA)
Alarm Input: | 1
Alarm Output: | 1
Video Output: | 1Vp-p Composite Output (75 Ω, BNC)
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: | Yes
Audio
Environment Noise Filtering: | Support
Smart Feature-set
Behavior Analysis: | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: | Cross a pre-defined virtual line
Intrusion Detection: | Enter and loiter in a pre-defined virtual region
Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display.
Recognition: | Face Detection
General
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: | 12 VDC, 0.95A, max. 11.5W
PoE (802.3af, 37V to 57V), 0.1A to 0.3A, max. 12.9W
Impact Protection: | IK10
Weather Proof: | IP67
IR Range: | Up to 30m
Dimensions: | Φ153.4 × 133.1 mm (Φ6.04″ × 5.24″)
Weight: | Camera: 1287 g (2.84 lb.)
