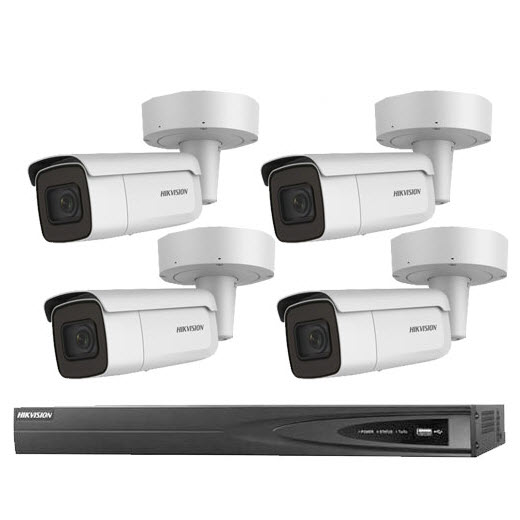

8MP 4CH Hikvision CCTV Kit: 4 x Outdoor Motorised VF Bullets + 4CH NVR


4 x  8 MP Hikvision Outdoor Motorised VF Bullets

Code/SKU: HIK-2CD2685WDIZS or DS-2CD2685WDIZS

Quick Specs: H.265+, IR, IO, WDR, IP67, 2.8-12mm

Lens Options: 2.8mm – 12mm       IR Range: 30m



1 x 4 CH Hikvision PoE NVR

Code/SKU: HIK-7604NI-K1-4P or DS-7604NI-K1-4P

Quick Specs: 4ch PoE NVR, 40Mbps, 4 PnP Ports, 4K, VGA / HDMI, 1 HDD Bay + 3TB



Upgrades available:

+ $200 Upgrade to 8 CH NVR

+ $450 per additional camera

If you require different lens or IR range for each camera in this kit (if the camera has options for it), please specify in the comments upon checkout. We will ship the right cameras to you.

$2,347.33 $2,674.11 inc GST +3 Year Warranty & Support

Optional Upgrades

Part of Hikvision’s Easy IP 3.0 range of cameras, the HIK-2CD2685WDIZS or DS-2CD2685WDIZS  is a vandal proof, outdoor and motorised varifocal IR bullet camera that produces an exceptional 8MP high-resolution video. Powered by the latest innovation in image sensor technology and an ultra high definition image processing chipset from Amberella it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR), Audio/Alarm IO and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. With a 2.8-12mm motorised varifocal lens, this camera offers great flexibility. Rigorously tested, Hikvision’s generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

Key Features:

    • 1/2.5″ progressive scan CMOS
    • 8MP resolution (3840 x 2160) at 20fps
    • 2.8 to 12 mm motorised lens (HVOF – 115 degrees to 35 dgrees)
    • H.265, H.265+, H.264+, H.264
    • Third stream
    • 120dB wide dynamic range (WDR)
    • Backlight compensation, 3D digital noise reduction
    • Up to 30m infrared
    • Audio/alarm IO
    • IP67, IK10
    • Line crossing, intrusion, object abandoned, object removed and face detection
    • Supports on-board storage, up to 128 GB
    • 802.3af PoE or 12VDC
Please be advised that 4 x 8MP cameras on a 4CH NVR will only work well on an area where it is set up as motion detection – not 24/7 recording.
There are limitations with the NVR which would prevent it from recording 24/7 resulting in missed recordings. Suggest upgrading to an 8CH NVR if you plan to use it on a 24/7 basis.
Camera
Signal System: | PAL/NTSC
Min. Illumination: | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter time: | 1/3 s to 1/100,000 s
Slow shutter: | Support
Lens: | 2.8 to 12 mm
Lens Mount: | φ14
Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night: | IR cut filter with auto switch
Wide Dynamic Range: | 120 dB
Digital noise reduction: | 3D DNR
Focus: | Motorized VF lens(-Z model)
Compression Standard
Video bit rate: | 32Kbps~16Mbps
Audio bit rate: | 32 to 128kbps
Triple Streams: | Yes
Frame Rate: | 50Hz: 20 fps (3840 × 2160), 25 fps (2944 × 1656, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30 fps (2944 × 1656, 2560 × 1440, 1920 × 1080, 1280 × 720)
Main Stream: | 50Hz: 25fps (640 × 360, 352 × 288)
60Hz: 30fps (640 × 360, 352 × 240)
Third Stream: | 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement: | BLC/3D DNR
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Regional Cropping: | Support
ROI: | Support 1 fixed region for each stream, and face dynamic tracking
Day/Night Switch: | Auto/Schedule/Triggered by Alarm In
Network
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security: | One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering, Anonymous access
System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface
Reset Button: | Yes
Audio
Environment Noise Filtering: | Support
Smart Feature-set
Line Crossing Detection: | Cross a pre-defined virtual line
Intrusion Detection: | Enter and loiter in a pre-defined virtual region
Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display.
General
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Consumption: | 12 VDC, 1.5A, max. 17W
PoE (802.3at, 42.5V to 57V), 0.1A to 0.5A, max. 19W
Weather Proof: | IP67
Dimensions: | Φ144.13×332.73 mm (Φ5.67″× 13.10″)
Weight: | Camera: 1893 g (4.17 lb.)
